The 80 mm family, including the COR 80 Industrial Passivhaus version, with a Uw from 0.66 W/m²K.

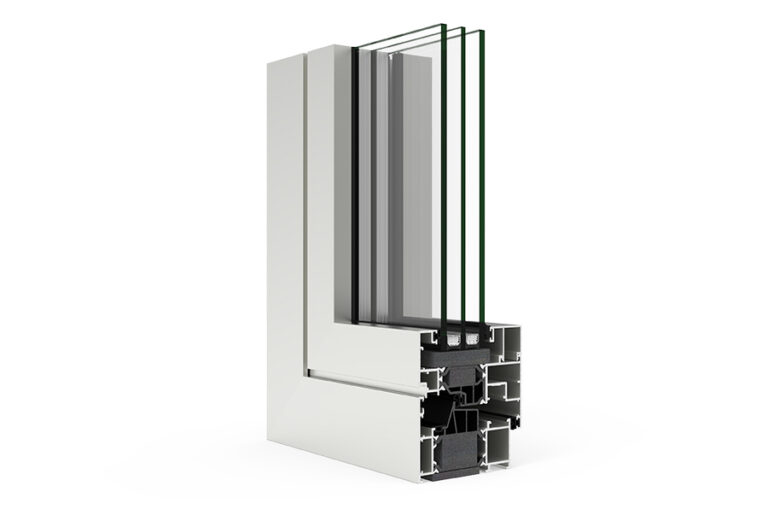

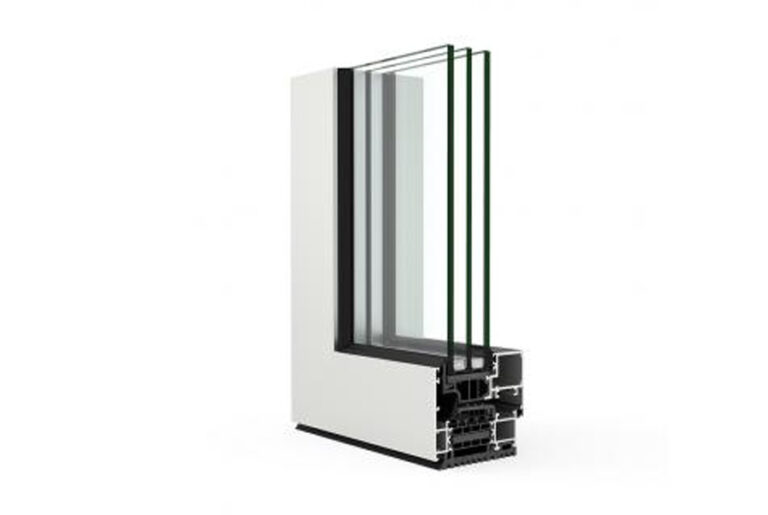

COR 80 is the greatest depth in the CORTIZO range of side-hung windows and brings together four distinct systems: Evolution, with four sash aesthetics, Concealed Sash, Industrial and Industrial Passivhaus.
The Passivhaus version brings the transmittance down to 0.66 W/m²K — the lowest value declared on a side-hung window in the whole range examined here. The Industrial version, by contrast, goes further on the glass, up to 73 mm, and adds Class RC2 burglar resistance.
As with COR 70, the four systems are not interchangeable. Each has its own data sheet, with its own test classes.
The widest glazing rebate in the range, 73 mm, with RC2 burglar resistance and ATG and SKG certifications.

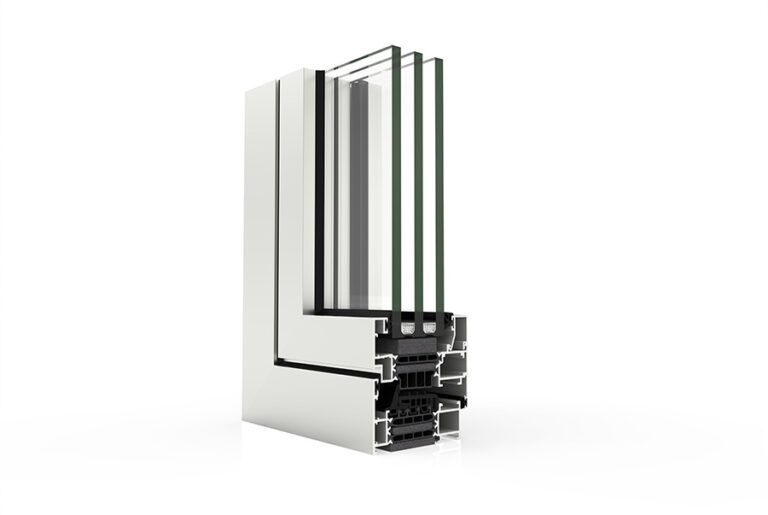

COR 80 INDUSTRIAL
The widest glazing rebate in the whole range of side-hung windows, 73 mm, with Class RC2 burglar resistance and the best watertightness in the 80 mm family.
Characteristics
Thermal transmittance
Uw ≥ 0.71 W/m²K
Glazing
maximum 73 mm / minimum 16 mm
Sound insulation
maximum Rw = 46 dB
Frame sightline
80 mm
Sash sightline
88 mm
Profile thickness
window 1.5 mm
Polyamide bar
45 mm
Maximum dimensions / leaf
W 1,500 mm × H 2,600 mm
Maximum weight / leaf
160 kg
Extrusion alloy
6063 T-5
Classes achieved in testing
Air permeability (UNE-EN 12207)
Class 4
Watertightness (UNE-EN 12208)
Class E1950
Wind resistance (UNE-EN 12210)
Class C5
Reference test specimen
1.23 × 1.48 m / 2 leaves
Burglar resistance (UNE-EN 1627)
Class RC2 (WK2)
Testing verified by
ALUMINIOS CORTIZO S.A.U.
Opening configurations
Inward: side-hung, tilt and turn, parallel sliding and bottom-hung.
Outward: side-hung and top-hung projecting.
Certification
ATG certification – 3235
SKG certification
Finishes
Two-tone possible
Powder coating (RAL, mottled and textured), to Qualicoat >60 microns
Wood-effect coating, to the Qualideco standard
Anodising, to Ewwa Euras / standard class 15, optionally classes 20 and 25
The thermally optimised version of the Industrial system.

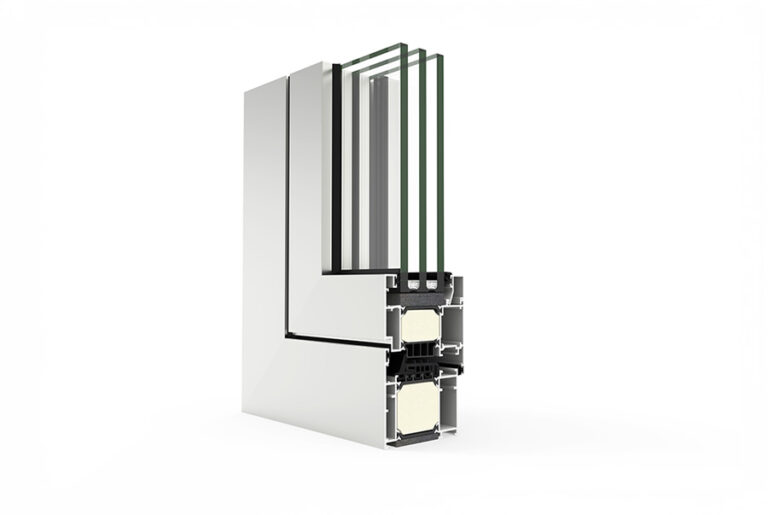

COR 80 INDUSTRIAL PASSIVHAUS
The thermally optimised version of the Industrial 80 system. The declared transmittance falls to 0.66 W/m²K, at the cost of a smaller glazing rebate than on the standard Industrial.
Characteristics
Thermal transmittance
Uw ≥ 0.66 W/m²K
Glazing
maximum 65 mm / minimum 16 mm
Sound insulation
maximum Rw = 46 dB
Frame sightline
80 mm
Sash sightline
88 mm
Profile thickness
window 1.6 mm
Polyamide bar
45 mm
Maximum dimensions / leaf
W 1,500 mm × H 2,600 mm
Maximum weight / leaf
160 kg
Extrusion alloy
6063 T-5
Classes achieved in testing
Air permeability (UNE-EN 12207)
Class 4
Watertightness (UNE-EN 12208)
Class E1950
Wind resistance (UNE-EN 12210)
Class C5
Reference test specimen
1.23 × 1.48 m / 2 leaves
Testing verified by
ALUMINIOS CORTIZO S.A.U.
Opening configurations
Inward: side-hung, tilt and turn, parallel sliding and bottom-hung.
Finishes
Two-tone possible
Powder coating (RAL, mottled and textured), to Qualicoat >60 microns
Wood-effect coating, to the Qualideco standard
Anodising, to Ewwa Euras / standard class 15, optionally classes 20 and 25
The data sheet is headed “COR 80 INDUSTRIAL TB PASSIVHAUS”. Passivhaus certification of a building is granted to the completed construction, not to the joinery system taken on its own.
The thermal transmittance values published by CORTIZO are minimum values for the system, conditional on the typology, on the dimensions of the joinery and on the glazing unit. The actual value of an assembly is established by calculation, on the configuration actually ordered.
From system to finished joinery
What we do with this system
Choosing the configuration
The system offers a range; the project asks for a value. We settle the version, the glazing unit and the typology from the actual requirements of the building, not from the maximum on the data sheet.
Calculation on the actual assembly
The transmittance of a window depends on the frame-to-glass ratio. We calculate it on the actual dimensions of the openings, not on the laboratory specimen.
Our own production
Cutting, machining, assembly and glazing in our own workshop in Baia Mare, on original CORTIZO profile and with hardware approved for the system.
Installation and handover
We install with our own teams, including abroad, and hand the job over with its documents. The warranty is the one published on our warranties page.
Next step
Do you want COR 80 on your project?
Send us the window schedule or the drawings. We will come back with the right version from the family, with the thermal calculation on the actual openings, and with the price.
