Solar radiation is stopped most effectively before it ever reaches the glass.
Solar control glass reduces heat gain, but it does so after the light has already entered the glass. An external louvre stops it before. The difference shows in summer, in the cooling load, and in winter, when an adjustable louvre can be opened to let the sun in.
We work with four categories of system fitted outside the joinery, in front of the glazing or of the opening: aluminium roller shutters, raffstore blinds with adjustable slats, Zipscreen blinds in technical fabric and security grilles. All of them can be operated and drawn out of sight when they are not needed.
Alongside these, we build aluminium shading systems on Cortizo profiles: solar shading louvres, fixed or adjustable, decorative louvre screens for masking parts of a façade, mallorquina shutters and terrace enclosures.
The Cortizo systems are aluminium, so technically they belong to the same family as the joinery. They appear here because they are chosen by function rather than by material — and each has a single technical page, in the systems catalogue.
Externally mounted systems
Shading and protection in front of the opening
Four systems fitted in front of the glazing or of the opening. All of them can be operated and drawn out of sight when they are not needed.

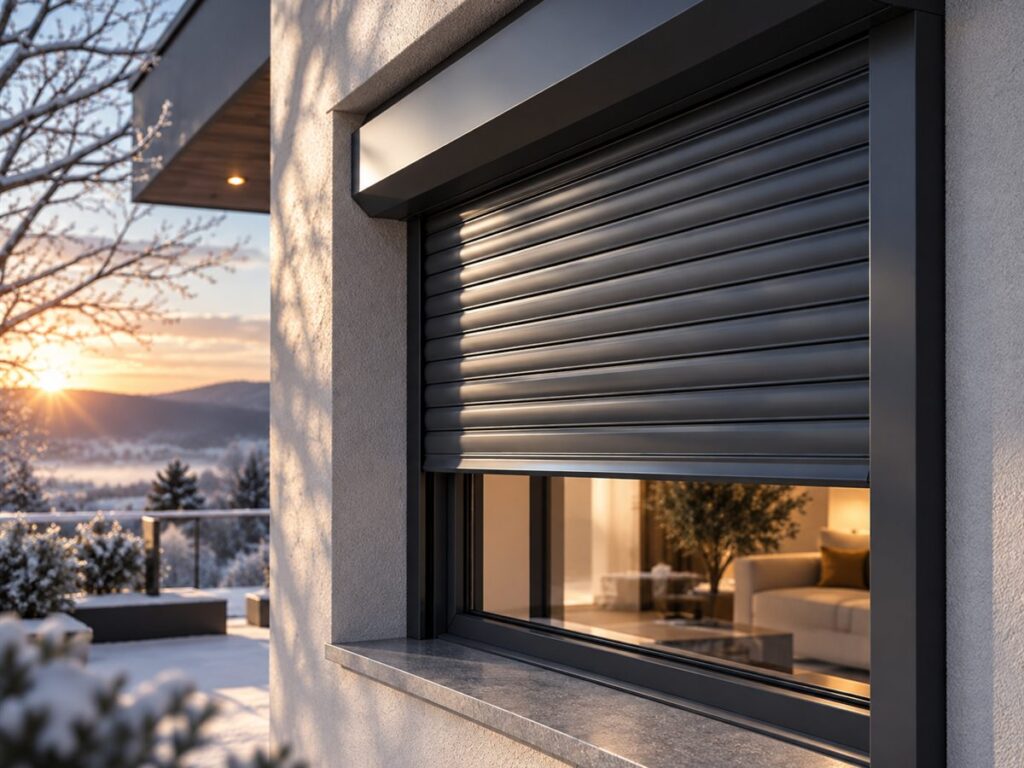

Aluminium roller shuttersSlat curtain, headbox and guidesSlats that roll into a headbox above the opening and run down in side guides.Curtainaluminium slats, with or without perforationsMake-upheadbox, side guides, bottom railEffectshade, darkness, privacyOperationmanual or motorisedView details

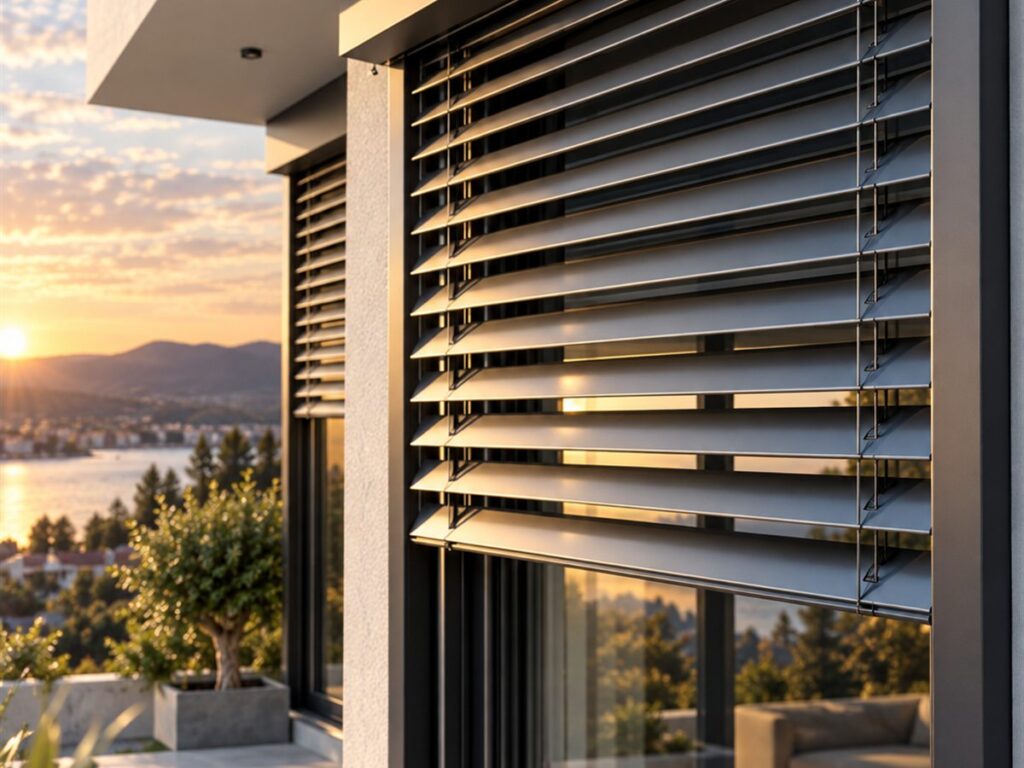

RaffstoreExternal venetian blindsAdjustable slats that raise and tilt. The only system that can be set to the position of the sun.Slattype C, type Z or Z with 90° rotationGuidingon cables or on railsMovementsraising and tilting of the slatsOperationmanual or motorisedView details

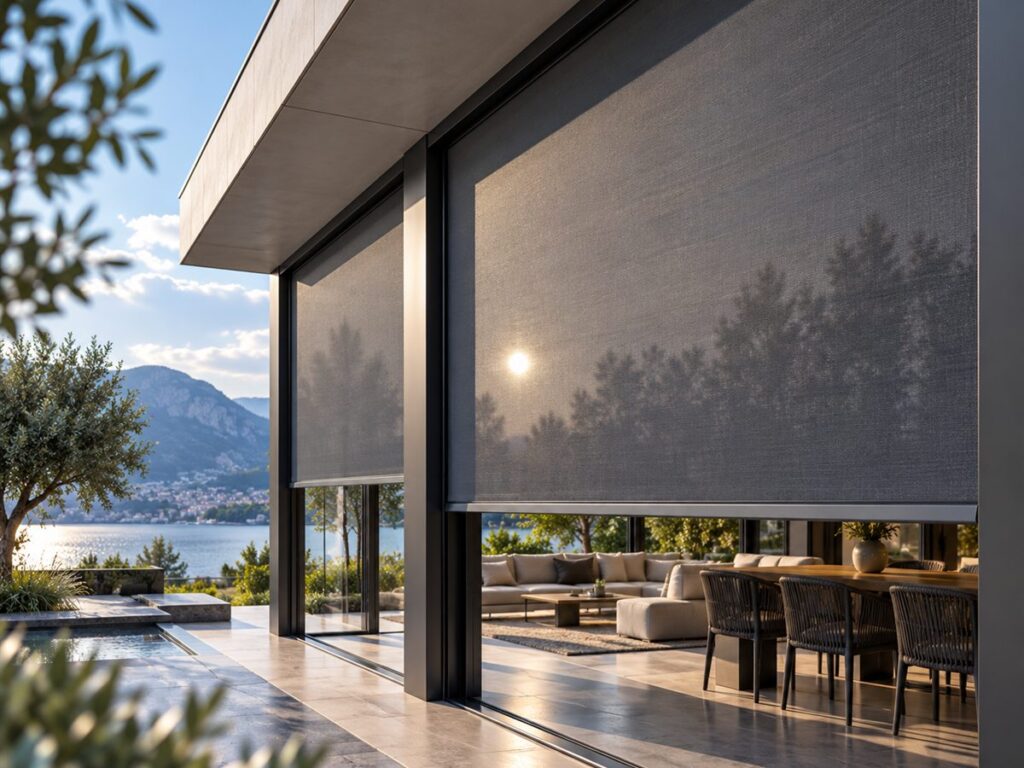

Zipscreen blindExternal screen with ZIP guidingTechnical fabric held in side rails by a zip profile. It stops the sun without darkening the room.Fabrictechnical fabric for external useGuidingzip profile, in side railsEffectreduces solar gain, keeps the viewOperationmotorisedView details

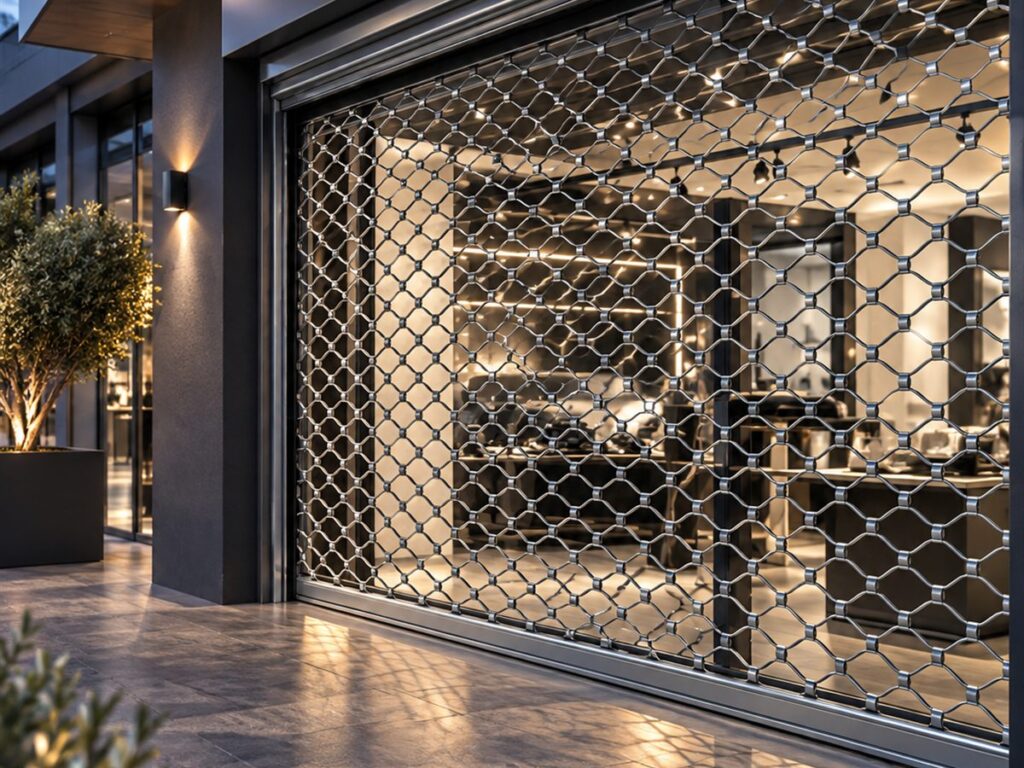

Security grillesClosing and protection for openingsOpenings that have to stay clear part of the time and be closed completely the rest.Variantsroller, retractable, hinged or fixedInfillopen mesh or solid slatsPurposeclosing and protecting the openingOperationmanual or motorised, depending on the systemView detailsCortizo systems
Louvres and shutters
Four systems with different jobs: solar control, screening, traditional shading and terrace enclosure. The figures on the cards are those from the official Cortizo data sheets.

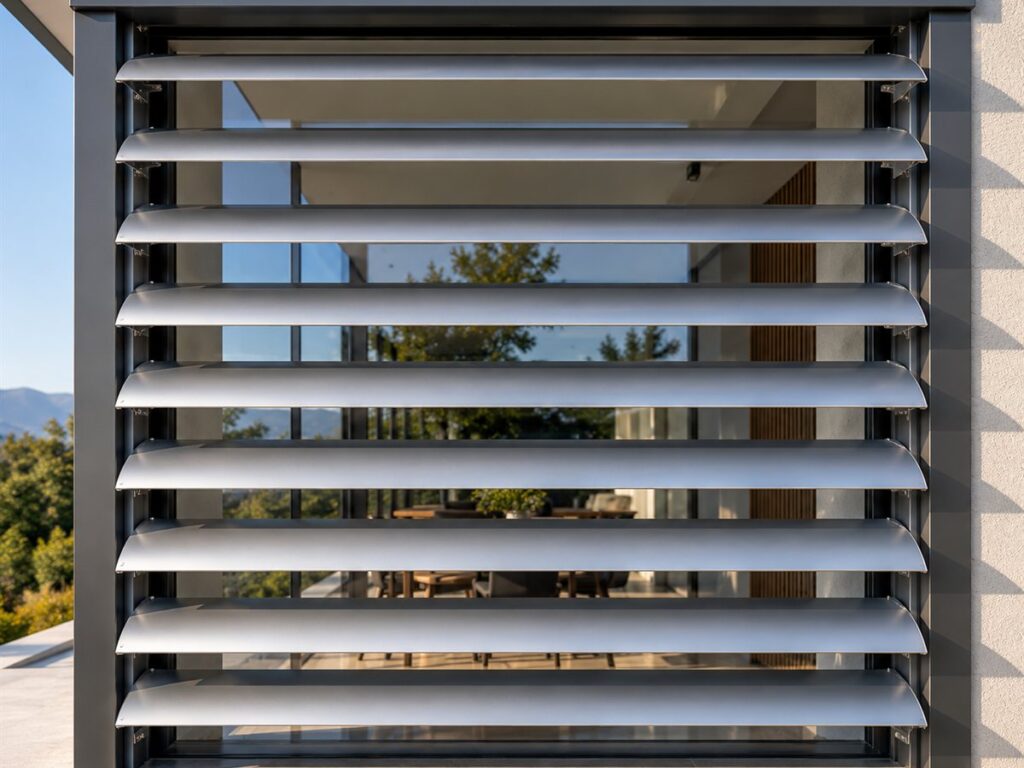

SOLAR SHADING LOUVRESSix slat widths, from 120 to 400 mm, fixed at 0º, 15º, 30º or 45º, or adjustable manually and by motor.Slat widths120–400 mmWindClass 6 (maximum)Free spanup to 4.2 mOperationfixed, manual or motorisedView details

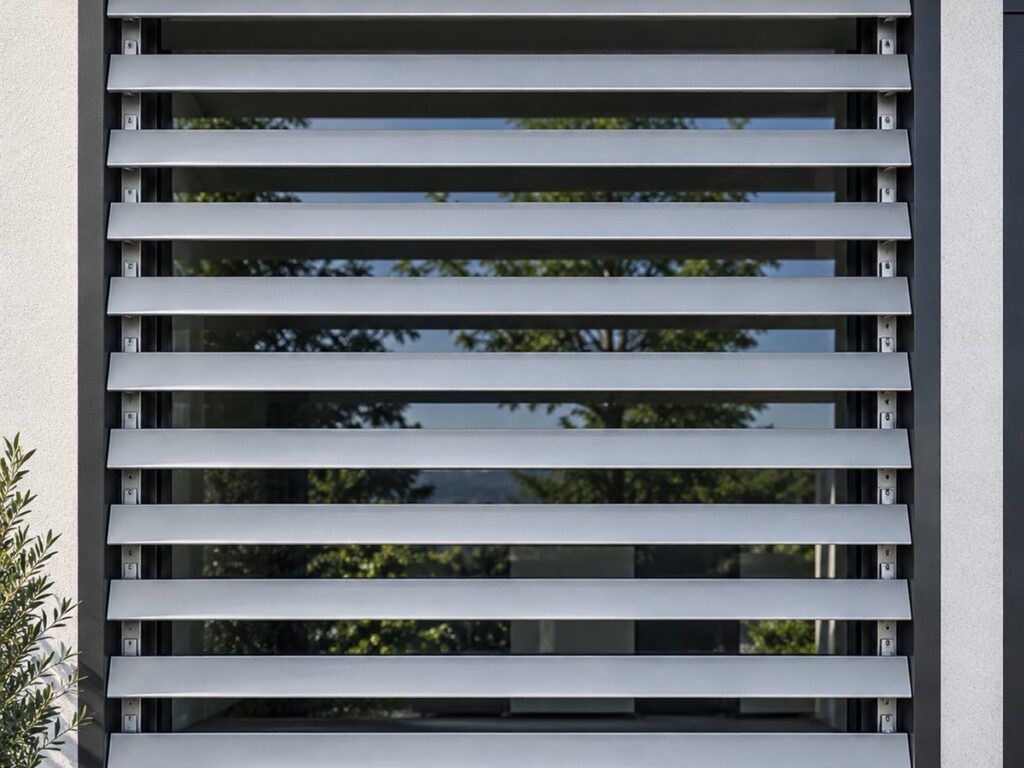

DECORATIVE LOUVRE SCREENSTen louvre profiles, each with its section dimensioned, and for eight of them the free visual area as well.Profiles10 dimensioned referencesSectionsfrom 18 × 38 to 30 × 190 mmWindup to Class 6 (maximum)Free spanup to 2.0 mView details

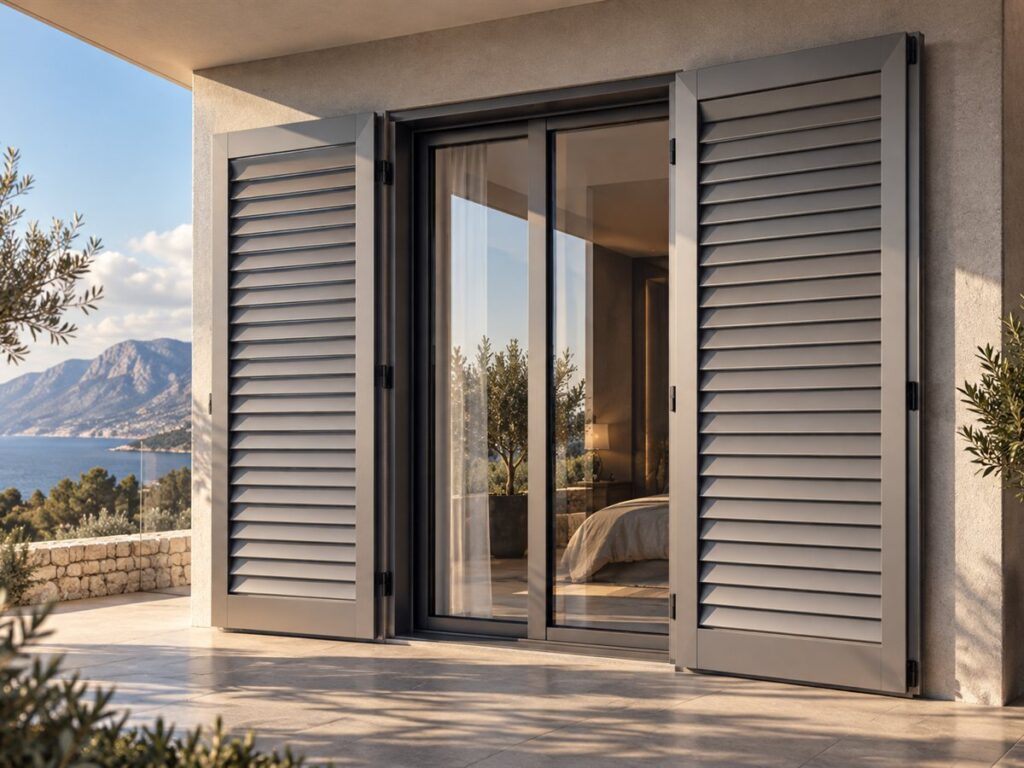

MALLORQUINA SHUTTERSThe classic louvred shutter, with fixed or adjustable slats and 1 to 4 hinged leaves.Frame / sash40 / 48 mmWindClass 5Maximum sizes1.600 × 2.500 mmLeaves1, 2, 3 and 4, side-hungView details

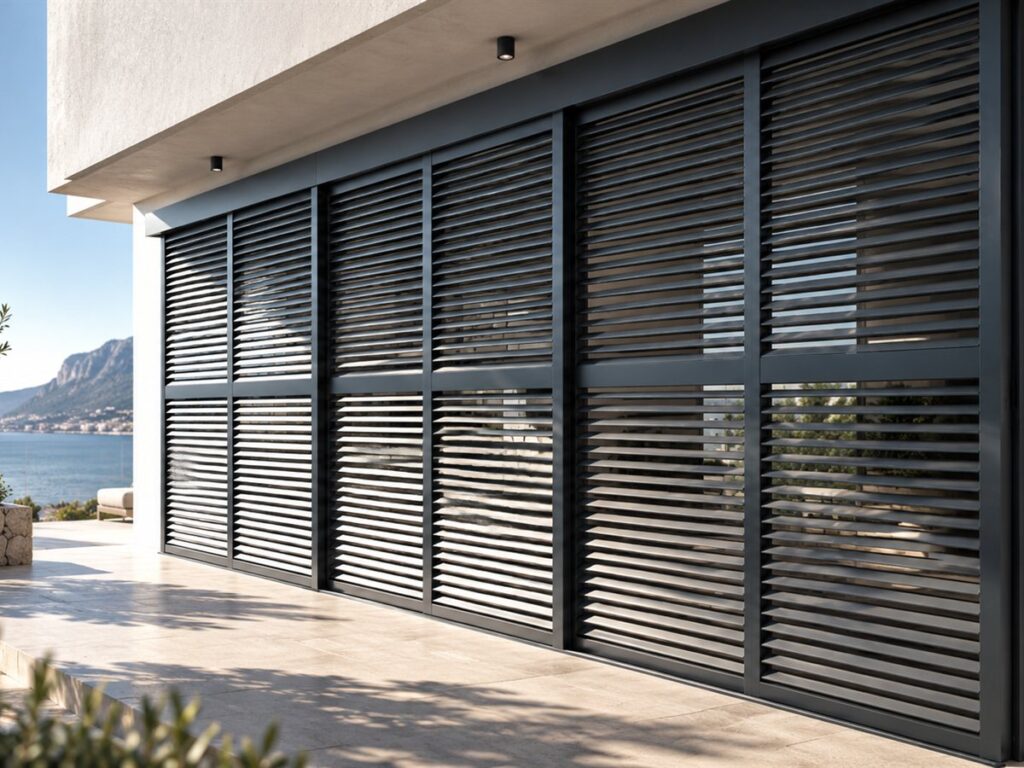

TAMIZA terrace enclosure system: side-hung, folding or sliding, with louvres, a solid panel or glass.Frame / sash47 / 40 mmWindClass 5Opening typesside-hung, folding, slidingInfillslouvres, solid panel or glassView detailsHow we choose
What we agree before ordering
Façade orientation
South, east and west each call for a different solution. Horizontal louvres work on a south face; to the east and west, where the sun comes in low, vertical louvres perform better.
Fixed or adjustable
Fixed louvres are simpler and cheaper. Adjustable ones let you admit the sun in winter and shut it out in summer. The decision has consequences for the whole life of the building.
The free span
Each louvre profile has a declared maximum free span, beyond which it needs an intermediate support. We check it against the actual openings.
Wind resistance
Shading systems are declared on wind resistance. On tall buildings and exposed sites, that is the criterion which decides the configuration.
The operation
Manual or motorised, with local control or integrated into the building management system. It is decided before production.
The finish
The same coating and anodising range as the rest of the aluminium joinery, so that the façade reads as one.
Applications
Where it is used
- Residential façades
- Office buildings
- Public buildings
- Terraces
- Balconies
- Screening services
- Multi-storey car parks
- Façade refurbishment
Next step
Do you have a façade that needs shading?
Send us the drawings or photographs of the façade, with its orientation. We will come back with the right system and the price.
