PVC windows and doors

PVC remains the material with the best ratio between the performance achieved and the budget invested.

In homes, offices or apartment buildings, PVC joinery that is well chosen and properly installed visibly reduces heat loss and external noise, without asking for any special maintenance over time.

We build our PVC joinery on Kömmerling systems, a German profile manufacturer within the profine group. We work the 70, 76 and 88 mm platforms, with either a double seal or a centre seal, with or without external aluminium cladding.

The type of opening, the hand, the hardware and the geometry are agreed together before anything goes into production. We do not work to off-the-shelf sizes.

Request a quote for PVC windows and doors

Kömmerling systems

What we make in PVC

Three system families, each with its own technical page. The specifications are those published by the manufacturer.

3 systemsPVC windowsSystems with a double seal or a centre seal, from the 70 mm profile through to the 88 mm, seven-chamber system suitable for passive houses.

3 systemsPVC entrance doorsEntrance door systems on the 76 and 88 mm platforms, with a thermally broken threshold, substantial reinforcement and burglar resistance up to class RC 2.

3 systemsPVC sliding systemsParallel sliding and lift-and-slide systems for large openings, with a level threshold and generous glazed areas.

Systems

The systems we work with routinely

Kömmerling 70 ADThe 70 mm, five-chamber system with a double seal, for everyday domestic windows.Construction depth70 mmChambers5Uf valueup to 1.2 W/(m²K)Glazing thickness10–44 mmView details

Kömmerling 76The 76 mm platform, with either a double seal or a centre seal, with or without aluminium cladding.Construction depth76 mm · 81.5 mm with claddingUf valuefrom 1.0 W/(m²K)Acoustic insulationup to 47 dBBurglar resistanceup to class RC 2View details

Kömmerling 88The seven-chamber, 88 mm deep system, declared by the manufacturer as suitable for passive houses.Construction depth88 mm · 93.5 mm with claddingChambers7Uf value0,93–0,98 W/(m²K)Glazing thicknessup to 60 mmView details

Kömmerling 70 — entrance doorThe entrance door on the 70 mm platform, with five chambers and a double seal.Construction depth70 mmChambers5Uf valueup to 1.2 W/(m²K)Panel / glazing10–44 mmView details

Kömmerling 76 — entrance doorEntrance door system on the 76 mm platform, with a thermally broken threshold and a double seal at the threshold.Construction depth76 mmPanel / glazingup to 52 mmBurglar resistanceup to class RC 2Maximum sash1.200 × 2.400 mmView details

Kömmerling 88 — entrance doorEntrance door on the 88 mm platform, with six chambers and panels up to 58 mm.Construction depth88 mmChambers6Panel / glazingup to 58 mmBurglar resistanceup to class RC 2View details

Kömmerling PremiSlide 76 – corner section of the sliding system, official render

Kömmerling PremiSlide 76Sliding system built on the Kömmerling 76 platform, with ECO SLIDE hardware and soft closing.Profile depth76 mmUf valueup to 1.4 W/(m²K)Uw valueup to 0.70 W/(m²K)Triple glazingup to 50 mmView details

Kömmerling PremiDoor 76 – corner section of the lift-and-slide system, official render

Kömmerling PremiDoor 76Lift-and-slide system with a 179 mm frame, for units up to 6.50 × 2.60 m.Frame depth179 mmMaximum unit6,50 × 2,60 mUf valueaverage value 1.4 W/(m²K)Glazingup to 50 mmView details

Kömmerling PremiDoor 88 – corner section of the lift-and-slide system, official render

Kömmerling PremiDoor 88Lift-and-slide on an 88 mm profile, with three sealing levels and a level WPC threshold.Profile depth88 mmUf value1,2–1,3 W/(m²K)Unit heightup to 2.90 mGlazingup to 56 mmView details

Hardware and accessories

Hardware for PVC windows and doors

The profile delivers the declared performance; the hardware decides whether it is kept. Handles, surface-mounted and concealed hinges, barrel hinges for doors, semi-automatic locking and level thresholds.

On PVC joinery the window hardware and the door locks are Winkhaus, and the handles are Roto and greenteQ. The burglar resistance class does not come from the profile but from the combination of keeps in the frame, locking points and handle — all three have to be to the required class, and the decision is taken before production.

Tilt-and-turn hardware with surface-mounted or concealed hinges
Handles plain, keyed or with a thumbturn, in several design lines
Key-operated multi-point locks, in hook, bolt or deadbolt versions
Semi-automatic multi-point lock for the entrance door
Level thresholds, integrated into the profile system

See the hardware for PVC

Why PVC

What the material gives you

Thermal insulation

Multi-chamber profiles and sealing gaskets limit heat loss around the perimeter of the window, which is exactly where it usually occurs.

Acoustic insulation

The combination of profile and glazing unit is chosen according to how much noise comes from outside: a busy road, a town centre or a quiet neighbourhood.

Minimal maintenance

PVC needs no painting and no periodic treatment. Ordinary cleaning and a check of the hardware are enough.

Long-term stability

The material neither rots nor rusts, and the profile keeps its geometry even where there is a large temperature difference between inside and out.

Made to order

Every window and every door is made to the sizes set for the project, not to standard sizes.

The look of aluminium, where it is wanted

The versions with external aluminium cladding give the colour freedom of aluminium while keeping the thermal behaviour of PVC.

Applications

Where it is used

Detached homes
Flats
Residential developments
Office buildings
Retail and commercial spaces
Public buildings
Refurbishment
New build
Passive houses

Next step

Do you have a PVC joinery project?

Send us the window schedule, or simply the sizes of the openings. We will come back with the right system and a quote.

Request a quote

Colours and finishes

Colours for PVC windows and doors

The PVC profile is coloured with foil, while the external aluminium cladding is powder coated. These are two different technologies with different ranges, which is why we show them separately.

External foil for white profile, from the stock range: plain RAL colours and wood-structure decors. Each decor is shown with the sample, the name and the article number published by RENOLIT.

Agate Grey 7038S30.30.70.0038
Anthracite GreyS30.30.70.0039
Anthracite Grey 7016S30.30.70.0001
Basalt Grey 7012S30.30.70.0026
BlackS30.30.70.0058
Black Brown 8518S30.30.70.0003
Black VLFS30.30.70.0060
Brilliant Blue 5007S30.30.70.0040
Bronze Platinum 1S30.30.71.0067
Chocolate Brown 8875S30.30.70.0032
Cream White 1379S30.30.70.0006
Crystal White Ash P 9294S30.30.70.0049
Dark Green 6125S30.30.70.0004
Dark Oak Fl-F1S30.30.71.0009
Desert OakS30.30.71.0035
Ginger Oak VLFS30.30.71.0052
Golden OakS30.30.71.0004
Grey 7155S30.30.70.0024
Honey Oak VLFS30.30.71.0051

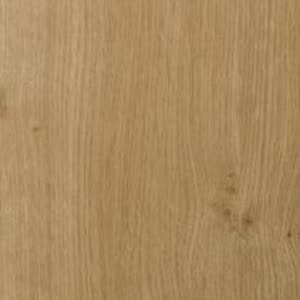

Irish OakS30.30.71.0011
Light Grey 7251S30.30.70.0027
MacoreS30.30.71.0003
MahoganyS30.30.71.0027
Monument OakS30.30.71.0037
Moss Green 6005S30.30.70.0035
Mountain OakS30.30.71.0036
Mountain PineS30.30.71.0032
Natural Oak Fl-GS30.30.71.0034
Quartz Grey 7039S30.30.70.0028

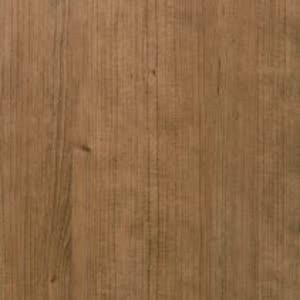

Rustic CherryS30.30.71.0012

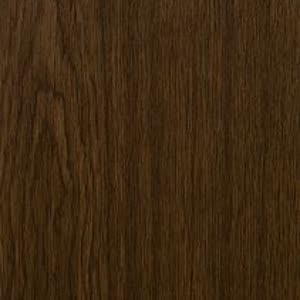

Rustic Oak 1S30.30.71.0029
SapeliS30.30.71.0008
Steel Blue 5150S30.30.70.0034
Stripe Douglas FirS30.30.71.0030
Walnut VS30.30.71.0010
Weissbach Eiche VLFS30.30.71.0049
White 9152S30.30.70.0005

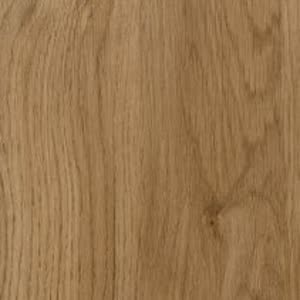

Winchester Xa 46830S30.30.71.0020
Winchester Xc 46843S30.30.71.0021
Wine Red 3005S30.30.70.0041
YakisugiS30.30.71.0071

The EXOFOL MX stock range, with the same decors, in the version intended for through-coloured profile. It also includes matt surfaces, Smooth or Finesse.

AnteakS30.30.11.0113
Anthracite Grey 7016S30.30.10.0054
Anthracite Grey 7016 Smooth 2S30.30.10.0249
Basalt Grey 7012S30.30.10.0050
Black Blue 5004S30.30.10.0113
Black Brown 8518S30.30.10.0078

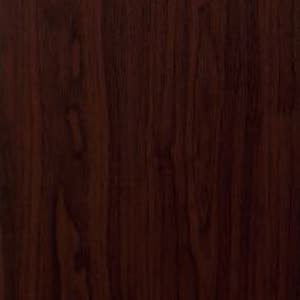

Black CherryS30.30.11.0059

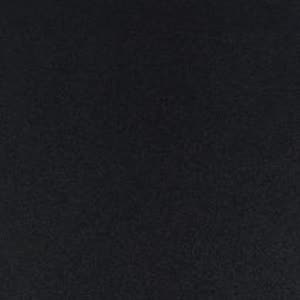

Black Grey 7021S30.30.10.0258
Chocolate Brown 8875S30.30.10.0080
Dark Green 6125S30.30.10.0045
Dark Oak Fl-F1S30.30.11.0012
Dark Red 3081S30.30.10.0026
Gale Grey Finesse 49122S30.30.10.0210
Golden OakS30.30.11.0031
Grey 7155S30.30.10.0064
Irish OakS30.30.11.0109
Light Grey 7251S30.30.10.0067
MacoreS30.30.11.0051
MahoganyS30.30.11.0019
Monumentengruen 9925S30.30.10.0092
Moss Green 6005S30.30.10.0042
Mountain PineS30.30.11.0039
Natural Oak Fl-GS30.30.11.0044
Oregon Pine 4S30.30.11.0008
Quartz Grey 7039S30.30.10.0062
Quartz Grey 7039 Smooth 2S30.30.10.0259
Rustic Oak 1S30.30.11.0046
SapeliS30.30.11.0016
Siena Pn 49237S30.30.11.0166
Siena Pr 49233S30.30.11.0165
Slate Grey 7015S30.30.10.0052
Slate Grey Finesse 49229S30.30.10.0212
Steel Blue 5150S30.30.10.0037

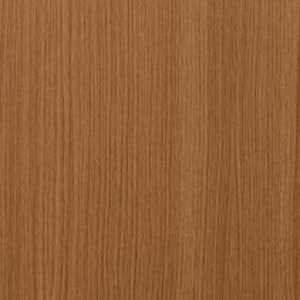

Stripe Douglas FirS30.30.11.0047

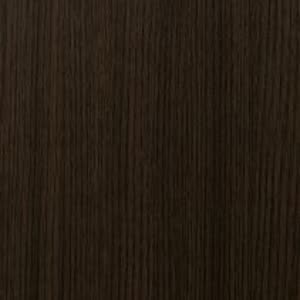

Swamp Oak St-FS30.30.11.0053
Walnut VS30.30.11.0033
Winchester Xa 49240S30.30.11.0167
Wine Red 3005S30.30.10.0022

The samples above are the images published by RENOLIT for each decor in the stock range, together with the official name and article number. What appears on screen does not replace the physical sample: shade and structure are confirmed against a swatch, before ordering. The stock range is not the whole catalogue — RENOLIT also produces decors to order. Official RENOLIT list ↗

The external aluminium cladding

On the clad systems — AluClip for windows and for the panelled door — the external face is no longer foil but powder-coated aluminium. It is ordered to a RAL code, matt or textured, while the PVC interior stays within the foil range above.

The two faces are chosen independently: textured anthracite outside and white or a wood effect inside, on the same window.

Standard range

1015
3005
5010
6005
6009
7011
7012
7016 Mate
7022
7035
8014
LM153E
8017
9011 Mate

Textured

PE1013TD
PE1015TD
PE9016TD
PE9010TD
PE7035TD
PE7039TD
PE7012TD
PE7016TD
PE5008TD
PE5003TD
PE6005TD
PE6009TD
PE8014TD
PE9005TD

The samples above are photographs of the powder coating cards. Only these finishes are used for the aluminium cladding: no the wood effects apply, nor does anodising, which is a different technology. The colour shown on screen may differ from the physical sample; the final shade is confirmed against a sample, on the code ordered.
