Rooflights, roofs and smoke exhaust
Glazed verandas and rooflights, a motorised mobile roof and certified smoke and heat exhaust systems.
Horizontal or inclined glazing calls for different tests from vertical glazing: watertightness on a slope, behaviour under snow and, where the building requires it, smoke exhaust.
Systems
3 system families available
ROOFLIGHT – VERANDAInclined glazing on a 52 mm mullion-and-transom frame, with a pitch between 12% and 85%.Uwfrom 0.6 W/m²KPitch12% (7º) – 85% (40º)Mullion / transom size52 mmProjecting180 kg motorisedView details
SLIDING MOBILE ROOFA motorised sliding roof, opening up to 66% of the area.Maximum opening66% of the areaRoof opening3.000–4.800 mmPitch8.5% projecting, up to 30ºOperationmotorisedView details

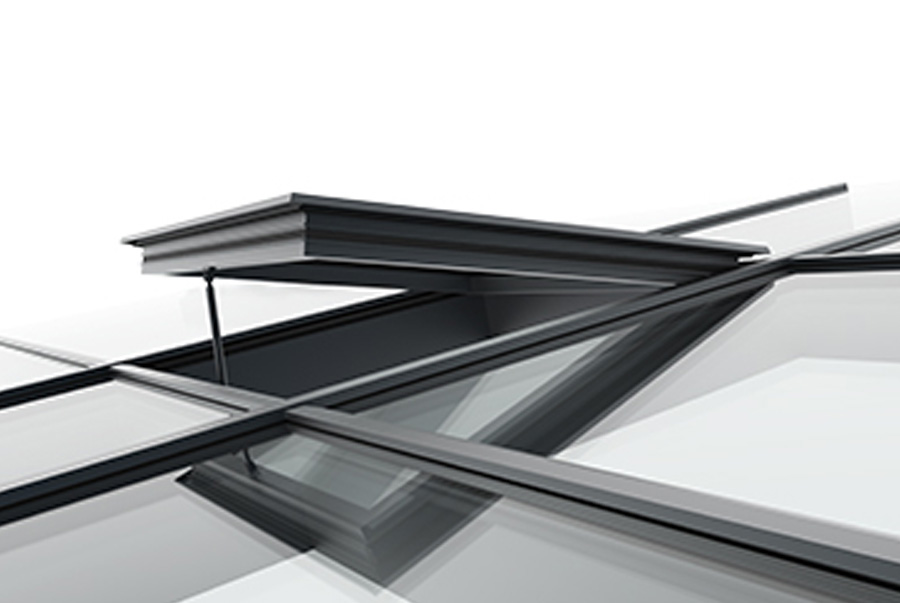

SHEV – SMOKE AND HEAT EXHAUST VENTILATION SYSTEMA motorised smoke exhaust system, with a sample tested at IFT Rosenheim.LaboratoryIFT Rosenheim GmbHReliabilityClass Re1000Heat resistanceB 300Uwfrom 0.9 W/m²KView detailsThe thermal transmittance values published by CORTIZO are minimum values for the system, conditional on the typology, on the dimensions of the joinery and on the glazing unit. The actual value of an assembly is established by calculation, on the configuration actually ordered.
Next step
Not sure which system suits you?
Send us the requirements of the project — the transmittance imposed, the opening dimensions, the wind zone — and we will propose the system that meets them, with the arguments from the data sheet.
