Aluminium windows and doors

COR 75 PERFORMANCE HARDWARE

The 75 mm profile with Performance hardware, the only one in the range classified for wind in Class E2600.

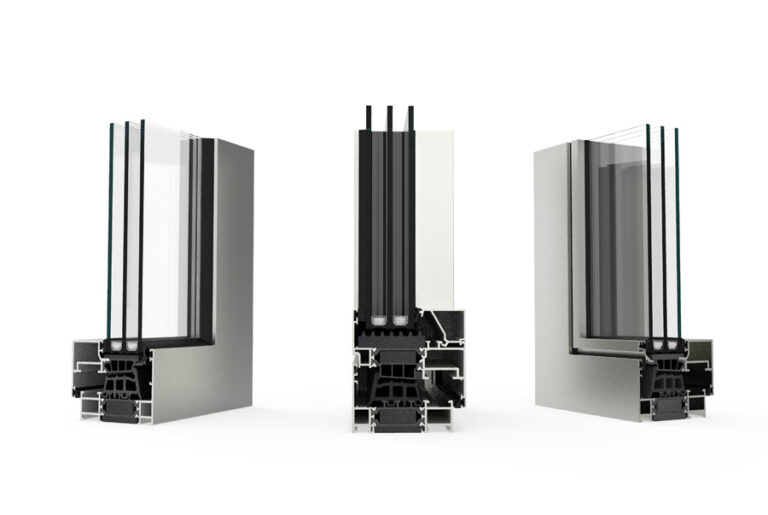

Section through the CORTIZO COR 75 Performance system, official manufacturer image

COR 75 Performance is the system that takes wind resistance furthest in the whole CORTIZO window range: Class E2600, against C5 for the other families. It is the argument for tall buildings, exposed locations and façades with large openings.

The two versions — concealed sash and visible sash — have the same declared transmittance, but differ significantly in glazing rebate, leaf weight and watertightness.

Request a quote for COR 75 Performance

At a glance

The values that decide the choice

Frame depth75 mm
Uwfrom 0.71 W/m²K
WindClass E2600
Variants2 configurations

Comparison

The versions in the family, side by side

CharacteristicCOR 75 PERFORMANCE HARDWARE · Concealed sashCOR 75 PERFORMANCE HARDWARE · Visible sash
Thermal transmittanceUw ≥ 0.71 W/m²KUw ≥ 0.71 W/m²K
Glazingmaximum 44 mmmaximum 68 mm
Sound insulationmaximum Rw = 45 dBmaximum Rw = 45 dB
Frame sightline75 mm75 mm
Sash sightline77 mm85 mm
Maximum dimensions / leafW 1,300 mm × H 3,000 mmW 1,700 mm × H 3,000 mm
Maximum weight / leaf150 kg200 kg

A dash means that the data sheet for that version does not declare that value. We have not filled it in with the value of another version.

Variants

Each version, with its own data sheet

COR 75 PERFORMANCE HARDWARE

Concealed sash

A 77 mm concealed sash on a 75 mm frame. The data sheet declares no polyamide bar length for this version.

Section through the CORTIZO COR 75 Performance system, official manufacturer image

Characteristics

Thermal transmittance
Uw ≥ 0.71 W/m²K
Glazing
maximum 44 mm
Sound insulation
maximum Rw = 45 dB
Frame sightline
75 mm
Sash sightline
77 mm
Profile thickness
window 1.8 mm
Maximum dimensions / leaf
W 1,300 mm × H 3,000 mm
Maximum weight / leaf
150 kg
Extrusion alloy
6063 T-5

Classes achieved in testing

Air permeability (UNE-EN 12207)
Class 4
Watertightness (UNE-EN 12208)
Class E1650
Wind resistance (UNE-EN 12210)
Class E2600
Reference test specimen
1.23 × 1.48 m / 2 leaves
Testing verified by
ALUMINIOS CORTIZO S.A.U.

Opening configurations

  • Inward: side-hung, tilt and turn, and bottom-hung.

Finishes

  • Two-tone possible
  • Powder coating (RAL, mottled and textured), to Qualicoat >60 microns
  • Wood-effect coating, to the Qualideco standard
  • Anodising, to Ewwa Euras / standard class 15, optionally classes 20 and 25

Download the data sheetOfficial CORTIZO data sheet – PDF · 294 KBCOR 75 PERFORMANCE HARDWARE

COR 75 PERFORMANCE HARDWARE

Visible sash

An 85 mm visible sash, a glazing rebate of up to 68 mm and the heaviest leaf in the family, 200 kg.

Section through the CORTIZO COR 75 Performance system, official manufacturer image

Characteristics

Thermal transmittance
Uw ≥ 0.71 W/m²K
Glazing
maximum 68 mm
Sound insulation
maximum Rw = 45 dB
Frame sightline
75 mm
Sash sightline
85 mm
Profile thickness
window 1.6 mm / balcony door 1.8 mm
Polyamide bar
40 mm
Maximum dimensions / leaf
W 1,700 mm × H 3,000 mm
Maximum weight / leaf
200 kg
Extrusion alloy
6063 T-5

Classes achieved in testing

Air permeability (UNE-EN 12207)
Class 4
Watertightness (UNE-EN 12208)
Class E2100
Wind resistance (UNE-EN 12210)
Class E2600
Reference test specimen
1.23 × 1.48 m / 2 leaves
Testing verified by
ALUMINIOS CORTIZO S.A.U.

Opening configurations

  • Inward: side-hung, tilt and turn, and bottom-hung.

Finishes

  • Two-tone possible
  • Powder coating (RAL, mottled and textured), to Qualicoat >60 microns
  • Wood-effect coating, to the Qualideco standard
  • Anodising, to Ewwa Euras / standard class 15, optionally classes 20 and 25

Download the data sheetOfficial CORTIZO data sheet – PDF · 294 KBCOR 75 PERFORMANCE HARDWARE

The thermal transmittance values published by CORTIZO are minimum values for the system, conditional on the typology, on the dimensions of the joinery and on the glazing unit. The actual value of an assembly is established by calculation, on the configuration actually ordered.

From system to finished joinery

What we do with this system

Choosing the configuration

The system offers a range; the project asks for a value. We settle the version, the glazing unit and the typology from the actual requirements of the building, not from the maximum on the data sheet.

Calculation on the actual assembly

The transmittance of a window depends on the frame-to-glass ratio. We calculate it on the actual dimensions of the openings, not on the laboratory specimen.

Our own production

Cutting, machining, assembly and glazing in our own workshop in Baia Mare, on original CORTIZO profile and with hardware approved for the system.

Installation and handover

We install with our own teams, including abroad, and hand the job over with its documents. The warranty is the one published on our warranties page.

Next step

Do you want COR 75 Performance on your project?

Send us the window schedule or the drawings. We will come back with the right version from the family, with the thermal calculation on the actual openings, and with the price.
