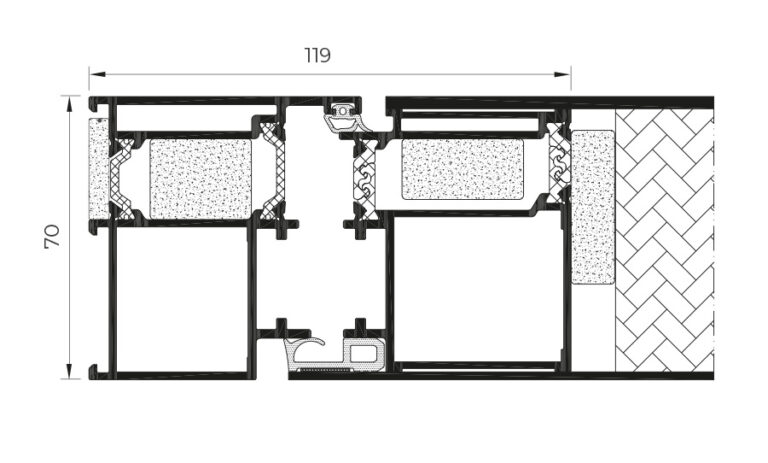

A door with the panel integrated into the sash, built on the Millennium Plus 70 and 80 platforms.
The panelled door is not a separate platform but a sash with an integrated panel, built on the Millennium Plus 70 and Millennium Plus 80 systems. The panel goes into the sash rather than over it, so that the leaf reads as a single continuous surface.
For this system the manufacturer declares two equipment options that do not appear on the ordinary doors in the range: a flush handle with LED lighting and opening by fingerprint.
The dimensions and the maximum weight of the sash change when concealed hinges are used. Both sets of values are published below, exactly as the manufacturer gives them.
The panel is integrated into the sash, with thicknesses between 33 and 80 mm on the 80 mm platform and between 23 and 70 mm on the 70 mm one. The system is tested to a million opening and closing cycles and to soft-body impact.
Characteristics
Frame sightline
80 / 70 mm
Sash sightline
80 / 70 mm
Profile thickness
door 2.0 mm
Polyamide bar
30 / 34 mm on the 80 mm platform; 20 / 24 mm on the 70 mm one
Panel
maximum 80 mm / minimum 33 mm on the 80 mm platform; maximum 70 mm / minimum 23 mm on the 70 mm one
Maximum dimensions / leaf
W 1,800 mm × H 3,000 mm; with concealed hinges W 1,500 mm × H 2,700 mm
Maximum weight / leaf
220 kg; 120 kg with concealed hinges
Compatibility
the Millennium Plus 70 and Millennium Plus 80 doors
Classes achieved in testing
Air permeability
Class 4
Watertightness
Class 6A
Wind resistance
Class C5
AEV reference specimen
1.20 × 2.30 m / 1 sash
Repeated opening and closing
1,000,000 cycles, to UNE-EN 1191; specimen 2.10 × 2.20 m / 1 sash
Soft-body impact resistance
to UNE-EN 13049; specimen 1.80 × 2.20 m / 2 sashes, 3+3 laminated glass
Opening configurations
Inward opening: pivoting and automatic pivoting.
Outward opening: pivoting and automatic pivoting.
Finishes
Two-tone possible
Powder coating (RAL, mottled and textured), to Qualicoat >60 microns
Wood-effect coating, to the Qualideco standard
Anodising, to Ewwa Euras / standard class 15, optionally classes 20 and 25
CORTIZO publishes no thermal transmittance value for the panelled door, because it depends on the panel chosen and on the platform it is built on. The value is calculated on the actual configuration, starting from the Millennium Plus 70 or 80 system.
PANELLED DOOR WITH FUHR MULTITRONIC 881 MOTORISED LOCK
A premium hardware solution
The same panelled door, with a fully motorised multipoint lock instead of the mechanical one. All the locking elements throw themselves the moment the door closes and are secured against being pushed back.
Characteristics
Type of system
a fully motorised multipoint lock, with an integrated panic function
Locking
automatic as the door closes; the system always locks by itself
Locking elements
type 3 — hook; type 8 — round bolt; type 11 — hook with two round bolts
Opening from outside
motorised, through access control systems; by key, as a back-up
Opening from inside
from the lever or the panic bar; motorised, via the door entry system
Backplate
flat 16, 20 and 24 mm; U profile 24×6, 24×6.7 and 30×8 mm
Distance from the axis
35 – 80 mm
Cylinder centres
72 and 92 mm
Operating spindle
8 and 10 mm as standard; 9 mm on the fire-resistant version
Areas
FUHR-Silver and stainless steel
Durability
over 500,000 motor operations, under test
Classes achieved in testing
Emergency exit and panic
EN 179 and EN 1125
Product standards
EN 15685 and EN 14846
VdS approval
class A, on types 3 and 11
Burglar resistance
up to RC4, in the appropriate systems; DIN EN 1627 et seq.
Other tests
DIN EN 1634-1; BRL 3104 (SKG***)
Finishes
Two-tone possible
Powder coating (RAL, mottled and textured), to Qualicoat >60 microns
Wood-effect coating, to the Qualideco standard
Anodising, to Ewwa Euras / standard class 15, optionally classes 20 and 25
Integration with an access control system — fingerprint, keypad, card reader or door entry — is settled before manufacture, because it is a matter of the wiring in the frame.
The thermal transmittance values published by CORTIZO are minimum values for the system, conditional on the typology, on the dimensions of the joinery and on the glazing unit. The actual value of an assembly is established by calculation, on the configuration actually ordered.
Applications
Where it is used
House entrances
Detached houses
Main entrances to blocks of flats
Office buildings
From system to finished joinery
What we do with this system
Choosing the configuration
The system offers a range; the project asks for a value. We settle the version, the glazing unit and the typology from the actual requirements of the building, not from the maximum on the data sheet.
Calculation on the actual assembly
The transmittance of a window depends on the frame-to-glass ratio. We calculate it on the actual dimensions of the openings, not on the laboratory specimen.
Our own production
Cutting, machining, assembly and glazing in our own workshop in Baia Mare, on original CORTIZO profile and with hardware approved for the system.
Installation and handover
We install with our own teams, including abroad, and hand the job over with its documents. The warranty is the one published on our warranties page.
