Entrance doors tested to a million cycles, in three systems: 70 mm, 80 mm and pivot.
An entrance door is not judged by the same criteria as a window. What counts is how many openings the hardware will take, how it behaves under a soft-body impact and how hard it is to force. Millennium Plus is tested on exactly these three counts.
The two side-hung versions, 70 and 80 mm, are tested to 1,000,000 opening and closing cycles to UNE-EN 1191 and classified RC2 for burglar resistance. The pivot version follows a different logic: a leaf of up to 2,100 mm wide and 250 kg, turning about an axis.
All three allow automatic operation or, in the case of the pivot door, operation on its axis; the exact configuration is settled at design stage.
door W 1,800 × H 3,000 mm; with concealed hinges W 1,500 × H 3,000 mm
door W 1,800 × H 3,000 mm; with concealed hinges W 1,500 × H 3,000 mm
W 2,100 mm (1,700 mm measured from the pivot axis + 400 mm) × H 3,000 mm
Maximum weight / leaf
220 kg
220 kg
250 kg
A dash means that the data sheet for that version does not declare that value. We have not filled it in with the value of another version.
Variants
Each version, with its own data sheet

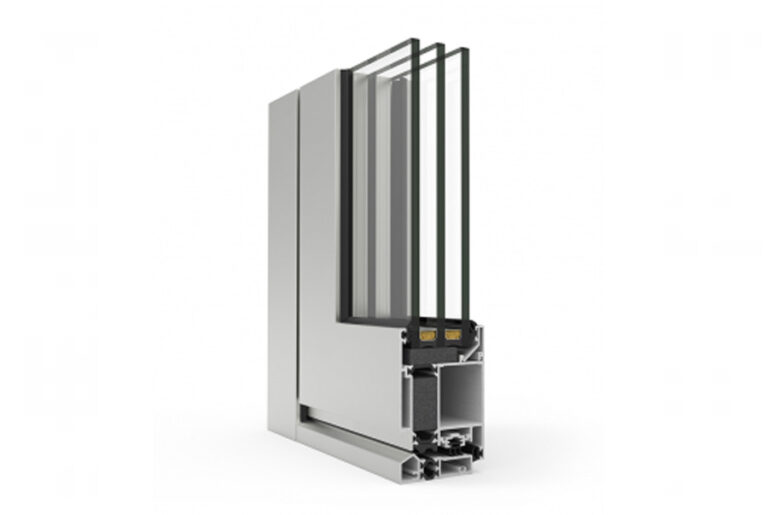

MILLENNIUM PLUS 70 DOOR
Side-hung door, 70 mm
The 70 mm version. The only one in the family that also allows double-action opening, with 1 and 2 leaves. The data sheet also declares a security test passed.
Characteristics
Thermal transmittance
Ud ≥ 0.9 W/m²K
Glazing
maximum 54 mm / minimum 15 mm
Sound insulation
maximum Rw = 38 dB
Frame sightline
70 mm
Leaf sightline
70 mm
Profile thickness
door 2.0 mm
Polyamide bar
24 mm
Maximum dimensions / leaf
door W 1,800 × H 3,000 mm; with concealed hinges W 1,500 × H 3,000 mm
Maximum weight / leaf
220 kg
Extrusion alloy
6063 T-5
Classes achieved in testing
Air permeability (UNE-EN 12207)
Class 4
Watertightness (UNE-EN 12208)
Class 6A
Wind resistance (UNE-EN 12210)
Class C4
Reference test specimen
1.20 × 2.30 m / 1 leaf
Soft-body impact resistance (UNE-EN 13049)
Class C5 (max), specimen 1.80 × 2.20 m / 2 leaves, 3+3 laminated glass
Repeated opening and closing (UNE-EN 1191)
1,000,000 cycles, specimen 2.10 × 2.20 m / 2 leaves
Burglar resistance (UNE-EN 1627)
Class RC2 (WK2)
Security test
passed (specimen 1.00 × 2.20 m / 1 leaf)
Testing verified by
ALUMINIOS CORTIZO S.A.U.
Opening configurations
Inward: side-hung door with 1 and 2 leaves.
Outward: side-hung door with 1 and 2 leaves.
Double-action: 1 and 2 leaves.
Automatic operation: single-leaf side-hung door, inward and outward.
Finishes
Two-tone possible
Powder coating (RAL, mottled and textured), to Qualicoat >60 microns
Wood-effect coating, to the Qualideco standard
Anodising, to Ewwa Euras / standard class 15, optionally classes 20 and 25

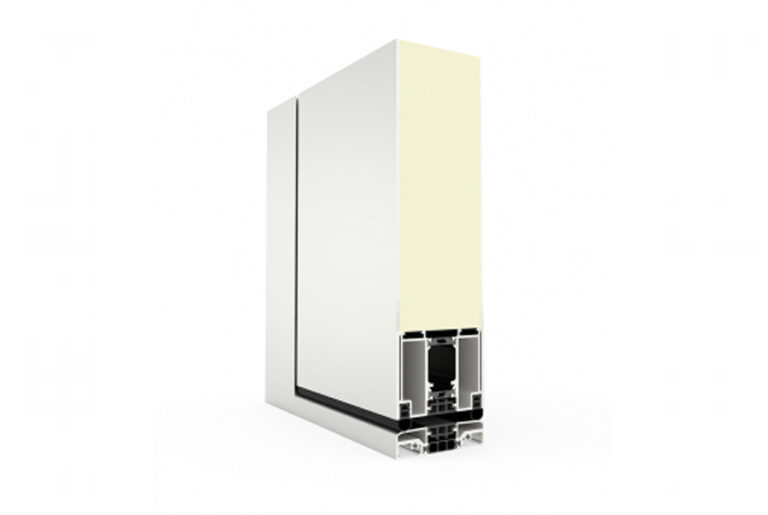

A pivot door, in a glazed version and a panelled version. The maximum leaf width is 2,100 mm, measured as 1,700 mm from the pivot axis plus 400 mm on the other side.
Characteristics
Thermal transmittance
Ud ≥ 0.77 W/m²K
Glazing
maximum 64 mm
Frame sightline
80 mm
Leaf sightline
80 mm
Panel sightline
80 mm
Profile thickness
door 2.0 mm
Polyamide bar
24 / 26 mm
Maximum dimensions / leaf
W 2,100 mm (1,700 mm measured from the pivot axis + 400 mm) × H 3,000 mm
Maximum weight / leaf
250 kg
Extrusion alloy
6063 T-5
Classes achieved in testing
Air permeability (UNE-EN 12207)
Class 4
Watertightness (UNE-EN 12208)
Class 5A
Wind resistance (UNE-EN 12210)
Class C5
Reference test specimen
1.20 × 2.00 m / 1 leaf
Testing verified by
ALUMINIOS CORTIZO S.A.U.
Opening configurations
Pivot.
A glazed version and a panelled version.
Finishes
Two-tone possible
Powder coating (RAL, mottled and textured), to Qualicoat >60 microns
Wood-effect coating, to the Qualideco standard
Anodising, to Ewwa Euras / standard class 15, optionally classes 20 and 25
The data sheet for this system declares no sound insulation value.
The thermal transmittance values published by CORTIZO are minimum values for the system, conditional on the typology, on the dimensions of the joinery and on the glazing unit. The actual value of an assembly is established by calculation, on the configuration actually ordered.
From system to finished joinery
What we do with this system
Choosing the configuration
The system offers a range; the project asks for a value. We settle the version, the glazing unit and the typology from the actual requirements of the building, not from the maximum on the data sheet.
Calculation on the actual assembly
The transmittance of a window depends on the frame-to-glass ratio. We calculate it on the actual dimensions of the openings, not on the laboratory specimen.
Our own production
Cutting, machining, assembly and glazing in our own workshop in Baia Mare, on original CORTIZO profile and with hardware approved for the system.
Installation and handover
We install with our own teams, including abroad, and hand the job over with its documents. The warranty is the one published on our warranties page.
Next step
Do you want Millennium Plus on your project?
Send us the window schedule or the drawings. We will come back with the right version from the family, with the thermal calculation on the actual openings, and with the price.
