Loads up to 3.0 kN/m, with categories of use declared against both the CTE and Eurocode 1.
Fit Plus is the version with the widest declared scope of use: zones A, B, C, D, E and F of CTE DB SE-AE, and A, B, C, D and E to Eurocode 1 — depending on the configuration chosen.

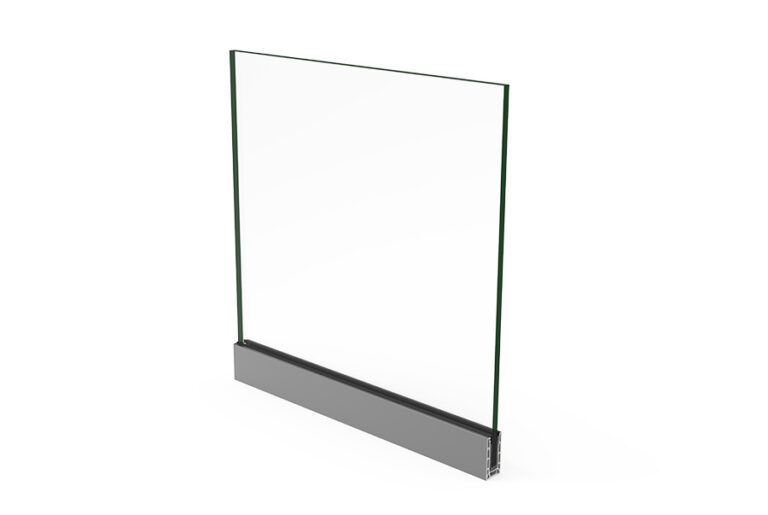

As with View Crystal, the glass is held in a continuous profile at the base, with no posts, and it can be fixed on the slab, on the slab edge, flush with the slab edge or on the reverse edge.
A glass railing with no posts, with its scope of use declared to both sets of standards.
Characteristics
Maximum height
1.100 mm
Maximum load
up to 3.0 kN/m
Categories of use
A, B, C, D, E and F to CTE DB SE-AE; A, B, C, D and E to Eurocode 1 — depending on the configuration
Installation options
on the slab; on the slab edge; flush with the slab edge; on the reverse slab edge
Permitted glass make-ups
10 mm glass
8 mm glass
6 mm glass
10 – 1.52 – 10
8 – 1.52 – 8
6 – 1.52 – 6
10 – 1.14 – 10
8 – 1.14 – 8
6 – 1.14 – 6
10 – 0.76 – 10
8 – 0.76 – 8
6 – 0.76 – 6
10 – 0.38 – 10
8 – 0.38 – 8
6 – 0.38 – 6
Twelve glazing options: double glass of 10, 8 or 6 mm, bonded with up to 4 polyvinyl butyral interlayers of 0.38 mm. All the make-ups are LAMINATED. CORTIZO recommends toughened glass.
Classes achieved in testing
Tests to
UNE 85237, UNE 85238 and UNE 85240; requirements set in the CTE (DB SU-1 and DB SE-AE) and in Eurocode 1, to EN 1991-1-1
Classification to UNE 85240
Class A – EXCELLENT
Reference test specimens
a railing in glass and extruded aluminium, fixed on the slab edge, H 1,100 × W 1,500 mm above finished floor level; and fixed on the slab, H 1,100 × W 1,500 mm above finished floor level
Finishes
Two-tone possible
Powder coating (RAL, mottled and textured), to Qualicoat >60 microns
Wood-effect coating, to the Qualideco standard
Anodising, to Ewwa Euras / standard class 15, optionally classes 20 and 25
The thermal transmittance values published by CORTIZO are minimum values for the system, conditional on the typology, on the dimensions of the joinery and on the glazing unit. The actual value of an assembly is established by calculation, on the configuration actually ordered.
From system to finished joinery
What we do with this system
Choosing the configuration
The system offers a range; the project asks for a value. We settle the version, the glazing unit and the typology from the actual requirements of the building, not from the maximum on the data sheet.
Calculation on the actual assembly
The transmittance of a window depends on the frame-to-glass ratio. We calculate it on the actual dimensions of the openings, not on the laboratory specimen.
Our own production
Cutting, machining, assembly and glazing in our own workshop in Baia Mare, on original CORTIZO profile and with hardware approved for the system.
Installation and handover
We install with our own teams, including abroad, and hand the job over with its documents. The warranty is the one published on our warranties page.
Next step
Do you want View Crystal Fit Plus on your project?
Send us the window schedule or the drawings. We will come back with the right version from the family, with the thermal calculation on the actual openings, and with the price.
