Juliet balcony railing, up to 1,800 mm wide, for a category of use of up to 1.6 kN/m.
A Juliet balcony is the railing that closes a French window where there is no cantilevered slab. It is fixed directly to the façade, around the opening.
The system takes eight laminated glass make-ups, of 8 or 6 mm, and is tested for a category of use of up to 1.6 kN/m.

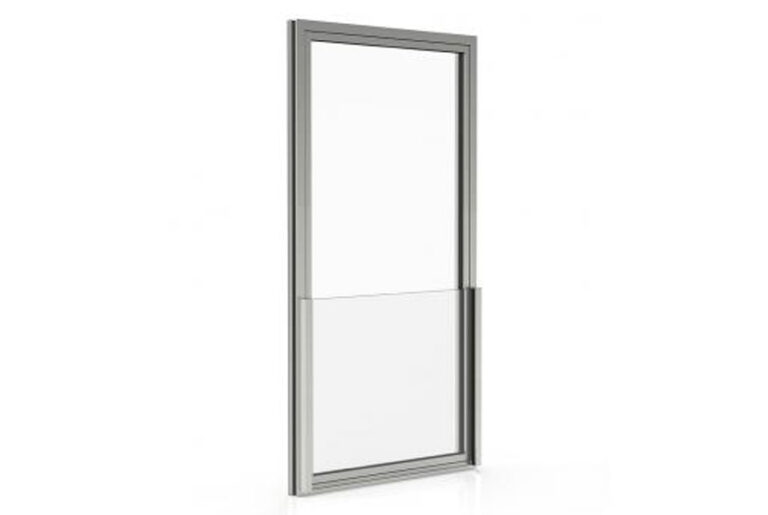

A railing in extruded aluminium and glass, for French windows.
Characteristics
Maximum width
1.800 mm
Height
the maximum height depends on the glass used and will in no case exceed the height stated by the manufacturer
Permitted glass make-ups
8 mm glass
6 mm glass
8 – 1.52 – 8
6 – 1.52 – 6
8 – 1.14 – 8
6 – 1.14 – 6
8 – 0.76 – 8
6 – 0.76 – 6
8 – 0.38 – 8
6 – 0.38 – 6
Eight glazing options: double glass of 8 or 6 mm, bonded with up to 4 polyvinyl butyral interlayers of 0.38 mm. All the make-ups are LAMINATED. CORTIZO recommends toughened glass.
Classes achieved in testing
Tests to
UNE 85237, UNE 85238 and UNE 85240; requirements set in the CTE (DB SU-1 and DB SE-AE) and in Eurocode 1, to EN 1991-1-1, for a category of use of up to 1.6 kN/m
Classification to UNE 85240
Class A – EXCELLENT
Reference test specimen
railing in extruded aluminium and glass, overall height 1,200 mm (H) × 1,800 mm (W)
Finishes
Two-tone possible
Powder coating (RAL, mottled and textured), to Qualicoat >60 microns
Wood-effect coating, to the Qualideco standard
Anodising, to Ewwa Euras / standard class 15, optionally classes 20 and 25
The thermal transmittance values published by CORTIZO are minimum values for the system, conditional on the typology, on the dimensions of the joinery and on the glazing unit. The actual value of an assembly is established by calculation, on the configuration actually ordered.
From system to finished joinery
What we do with this system
Choosing the configuration
The system offers a range; the project asks for a value. We settle the version, the glazing unit and the typology from the actual requirements of the building, not from the maximum on the data sheet.
Calculation on the actual assembly
The transmittance of a window depends on the frame-to-glass ratio. We calculate it on the actual dimensions of the openings, not on the laboratory specimen.
Our own production
Cutting, machining, assembly and glazing in our own workshop in Baia Mare, on original CORTIZO profile and with hardware approved for the system.
Installation and handover
We install with our own teams, including abroad, and hand the job over with its documents. The warranty is the one published on our warranties page.
Next step
Do you want the Juliet balcony on your project?
Send us the window schedule or the drawings. We will come back with the right version from the family, with the thermal calculation on the actual openings, and with the price.
