A large-format slider, with up to 8 leaves, 4 tracks and full retraction into the wall.
4900 HI is the high-capacity slider in the range: up to 8 leaves, up to 4 tracks, full retraction into the wall and the possibility of a 90º corner with no mullion. The leaf can reach 2,200 × 3,000 mm and 240 kg.
The system has two versions, with different tables: the standard one, with a 48 mm sash, and the perimeter-sash one, of 46 mm, which changes both the transmittance and the glazing rebate.
A dash means that the data sheet for that version does not declare that value. We have not filled it in with the value of another version.
Variants
Each version, with its own data sheet

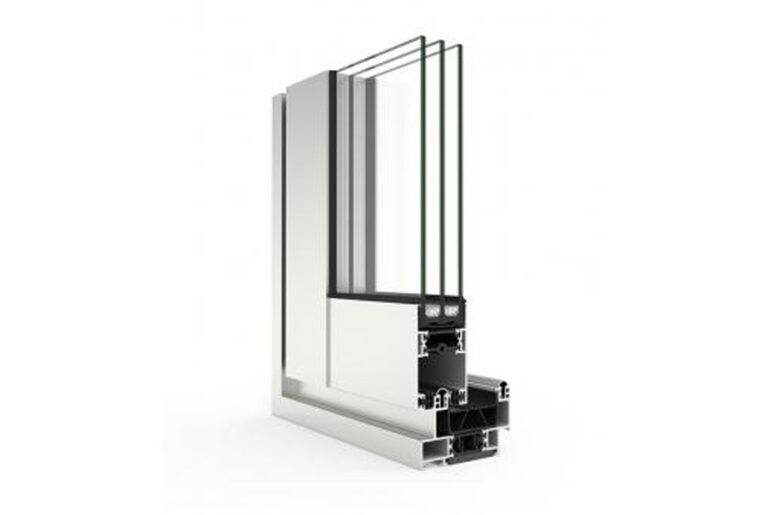

4900 HI SLIDING
The standard version
The standard version, with a 48 mm sash and a glazing rebate of up to 36 mm. It is the only one of the two that allows a 90º corner with no mullion and retraction into the wall.
Characteristics
Thermal transmittance
Uw ≥ 1.2 W/m²K
Glazing
maximum 36 mm / minimum 24 mm
Sound insulation
maximum Rw = 40 dB
Frame sightline
60, 70, 89, 120, 125 and 130 mm; 126 and 145 mm on 3 tracks; 201 mm on 4 tracks
Sash sightline
48 mm
Profile thickness
door 1.6 mm
Polyamide bar
34 mm
Maximum dimensions / leaf
W 2,200 mm × H 3,000 mm
Maximum weight / leaf
240 kg
Extrusion alloy
6063 T-5
Classes achieved in testing
Air permeability (UNE-EN 12207)
Class 4
Watertightness (UNE-EN 12208)
Class 7A
Wind resistance (UNE-EN 12210)
Class C5
Reference test specimen
1.80 × 2.20 m / 2 leaves
Testing verified by
ALUMINIOS CORTIZO S.A.U.
Opening configurations
Slider with 2, 3, 4, 6 and 8 leaves.
One track possible (1 leaf + 1 fixed light), 2, 3 and 4 tracks.
Slider retracting into the wall, with 1, 2, 3, 4 and 6 leaves.
Opening at 90º with no mullion possible.
Certification
DTA CSTB – France, no. 6/20-2420_V2 (valid 01.07.2024 – 31.07.2029)
Procedure covered: COR-4900, sliders with 2, 3, 4 or 6 leaves, on 2 or 3 tracks
The perimeter-sash version, of 46 mm. The declared transmittance is better than on the standard version, but the glazing rebate is smaller, and the data sheet mentions neither a 90º corner nor retraction into the wall.
Characteristics
Thermal transmittance
Uw ≥ 1.1 W/m²K
Glazing
maximum 32 mm
Sound insulation
maximum Rw = 40 dB
Frame sightline
60, 70, 89, 120, 125 and 130 mm; 126 and 145 mm on 3 tracks; 201 mm on 4 tracks
Sash sightline
46 mm
Profile thickness
window 1.6 mm
Polyamide bar
32 mm
Maximum dimensions / leaf
W 2,200 mm × H 3,000 mm
Maximum weight / leaf
240 kg
Extrusion alloy
6063 T-5
Classes achieved in testing
Air permeability (UNE-EN 12207)
Class 4
Watertightness (UNE-EN 12208)
Class 7A
Wind resistance (UNE-EN 12210)
Class C5
Reference test specimen
1.80 × 2.20 m / 2 leaves
Testing verified by
ALUMINIOS CORTIZO S.A.U.
Opening configurations
Slider with 2, 3, 4, 6 and 8 leaves.
One, two, three or four tracks possible.
Finishes
Two-tone possible
Powder coating (RAL, mottled and textured), to Qualicoat >60 microns
Wood-effect coating, to the Qualideco standard
Anodising, to Ewwa Euras / standard class 15, optionally classes 20 and 25
Both versions are published by CORTIZO in the same document.
The thermal transmittance values published by CORTIZO are minimum values for the system, conditional on the typology, on the dimensions of the joinery and on the glazing unit. The actual value of an assembly is established by calculation, on the configuration actually ordered.
From system to finished joinery
What we do with this system
Choosing the configuration
The system offers a range; the project asks for a value. We settle the version, the glazing unit and the typology from the actual requirements of the building, not from the maximum on the data sheet.
Calculation on the actual assembly
The transmittance of a window depends on the frame-to-glass ratio. We calculate it on the actual dimensions of the openings, not on the laboratory specimen.
Our own production
Cutting, machining, assembly and glazing in our own workshop in Baia Mare, on original CORTIZO profile and with hardware approved for the system.
Installation and handover
We install with our own teams, including abroad, and hand the job over with its documents. The warranty is the one published on our warranties page.
Next step
Do you want 4900 HI on your project?
Send us the window schedule or the drawings. We will come back with the right version from the family, with the thermal calculation on the actual openings, and with the price.
