The minimalist slider: a 25 mm mullion in the field of view and leaves of up to 4 × 4 m, 700 kg motorised.
COR Vision is the family in which the aluminium withdraws as far as possible from the field of view. The three systems — Vision, Vision Evolution and Vision Plus — follow the same idea, but with very different capacities.

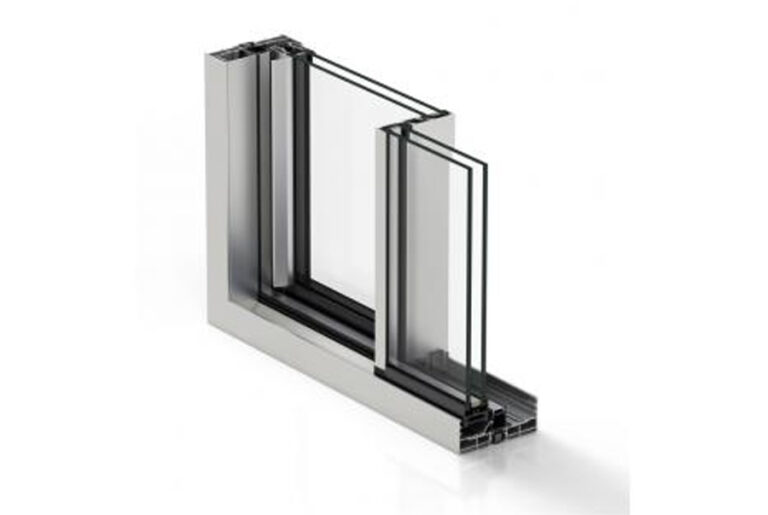

Vision has a 37 mm sash and a 320 kg leaf. Evolution brings the side dimension down to 62 mm, with a 25 mm overlap, and rises to 500 kg on a leaf of 3.5 × 3.5 m. Vision Plus goes up to 4,000 × 4,000 mm and 700 kg, in the motorised version.
All three allow a 90º corner with no mullion and retraction into the wall, which makes it possible to open a corner of a building completely.

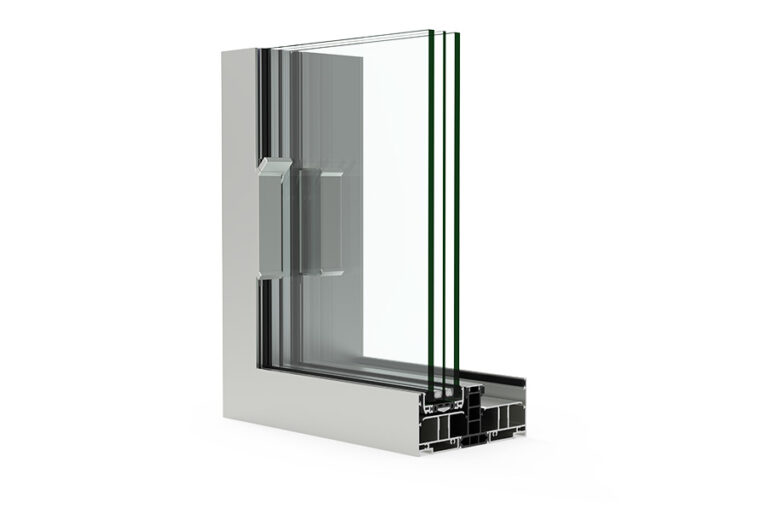

The version with the best transmittance in the family and with an overlap between leaves of only 25 mm. The data sheet declares the side dimension and the overlap instead of the usual sash dimension.
Characteristics
Thermal transmittance
Uw ≥ 0.88 W/m²K
Glazing
maximum 44 mm / minimum 28 mm
Sound insulation
maximum Rw = 43 dB
Frame sightline
160 mm; 248 mm on 3 tracks; 336 mm on 4 tracks
Side sightline
62 mm
Overlap between leaves
25 mm
Maximum dimensions / leaf
W 3,500 mm × H 3,500 mm
Maximum weight / leaf
500 kg
Extrusion alloy
6063 T-5
Classes achieved in testing
Air permeability (UNE-EN 12207)
Class 4
Watertightness (UNE-EN 12208)
Class E900
Wind resistance (UNE-EN 12210)
Class C5
Reference test specimen
4.00 × 3.038 m / 2 leaves
Testing verified by
ALUMINIOS CORTIZO S.A.U.
Opening configurations
Slider, with one, two, three or four tracks possible.
Internal and external corner at 90º with no mullion.
Slider retracting into the wall.
Finishes
Two-tone possible
Powder coating (RAL, mottled and textured), to Qualicoat >60 microns
Wood-effect coating, to the Qualideco standard
Anodising, to Ewwa Euras / standard class 15, optionally classes 20 and 25

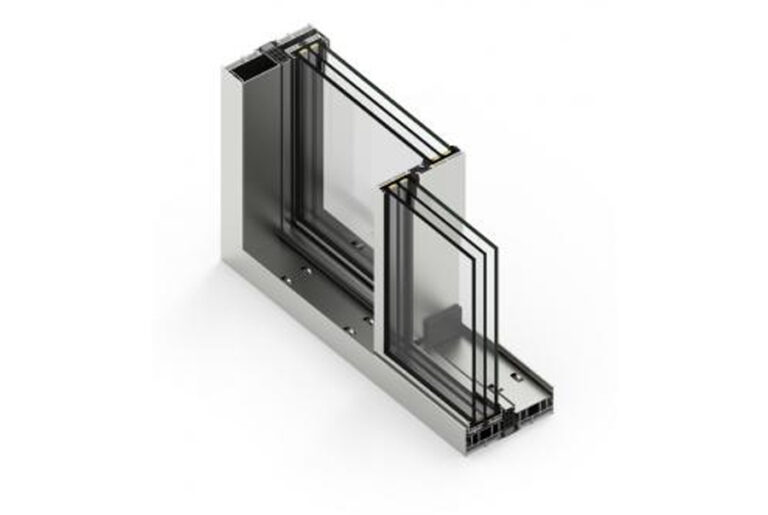

The greatest capacity in the whole sliding range: a leaf of 4,000 × 4,000 mm, 400 kg in the manual version and 700 kg motorised. The water and wind classes are declared on two different specimens.
Characteristics
Thermal transmittance
Uw ≥ 0.9 W/m²K
Glazing
maximum 56 mm / minimum 36 mm
Sound insulation
maximum Rw = 43 dB
Frame sightline
180 mm; 278 mm on 3 tracks
Sash sightline
69 mm
Profile thickness
door 2.0 mm
Polyamide bar
frame 40 mm / sash 18 and 32 mm
Maximum dimensions / leaf
W 4,000 mm × H 4,000 mm
Maximum weight / leaf
400 kg manual / 700 kg motorised
Extrusion alloy
6063 T-5
Classes achieved in testing
Air permeability (UNE-EN 12207)
Class 4
Watertightness (UNE-EN 12208)
Class 7A (balcony door 4.00 × 3.00 m / 2 leaves); Class 9A (4.00 × 3.00 m / 1 leaf + 1 fixed light)
Wind resistance (UNE-EN 12210)
Class C3 (balcony door 4.00 × 3.00 m / 2 leaves); Class C4 (4.00 × 3.00 m / 1 leaf + 1 fixed light)
Testing verified by
ALUMINIOS CORTIZO S.A.U.
Opening configurations
Slider with 1, 2, 3, 4 and 6 leaves.
One, two, three or four tracks possible.
Open corner at 90º with no mullion.
Slider retracting into the wall, with 1, 2, 3 and 4 leaves.
Finishes
Two-tone possible
Powder coating (RAL, mottled and textured), to Qualicoat >60 microns
Wood-effect coating, to the Qualideco standard
Anodising, to Ewwa Euras / standard class 15, optionally classes 20 and 25
The thermal transmittance values published by CORTIZO are minimum values for the system, conditional on the typology, on the dimensions of the joinery and on the glazing unit. The actual value of an assembly is established by calculation, on the configuration actually ordered.
From system to finished joinery
What we do with this system
Choosing the configuration
The system offers a range; the project asks for a value. We settle the version, the glazing unit and the typology from the actual requirements of the building, not from the maximum on the data sheet.
Calculation on the actual assembly
The transmittance of a window depends on the frame-to-glass ratio. We calculate it on the actual dimensions of the openings, not on the laboratory specimen.
Our own production
Cutting, machining, assembly and glazing in our own workshop in Baia Mare, on original CORTIZO profile and with hardware approved for the system.
Installation and handover
We install with our own teams, including abroad, and hand the job over with its documents. The warranty is the one published on our warranties page.
Next step
Do you want COR Vision on your project?
Send us the window schedule or the drawings. We will come back with the right version from the family, with the thermal calculation on the actual openings, and with the price.
