Aluminium windows and doors

Hardware and accessories

The hardware is the part of the joinery you touch every day. It determines how easily a window closes after ten years, how discreetly a mullion reads and how secure an entrance door is.

For aluminium joinery we work with Cortizo hardware. Below is the complete range, grouped by type: handles, espagnolettes, pull handles, locking systems and special hardware. The choice is made project by project, according to the profile series, the size of the sash and the way the joinery will be used.

Ask for our recommendation

Handles

Cortizo handles

The handles in the Cortizo range, for windows, doors and sliding systems. Each model has its own rose geometry, its own spindle and its own compatibility with the profile series.

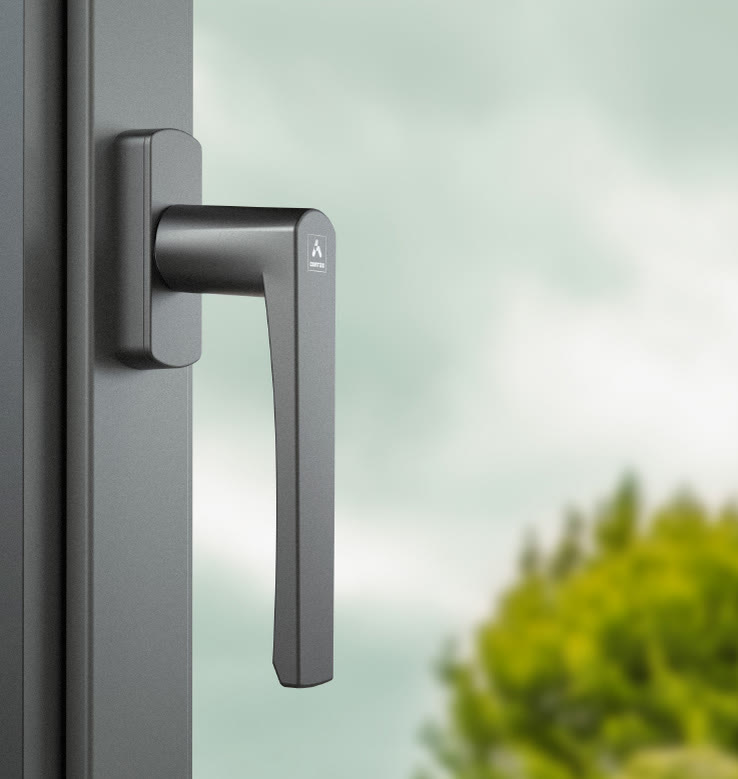

Stylish handle

Stylish handle

The new Stylish handle stands out through the simplicity of its design, with more pronounced lines.

  • Design with a reduced rose
  • Version for external, internal and PVC fitting
  • Available in window and door versions
  • Quick fitting
  • Available across the whole range of coatings

Variants

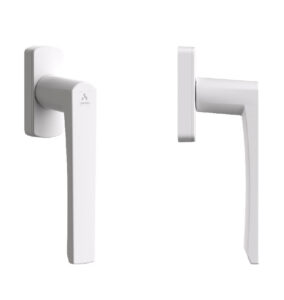

  • Stylish handle – window handle Window handle

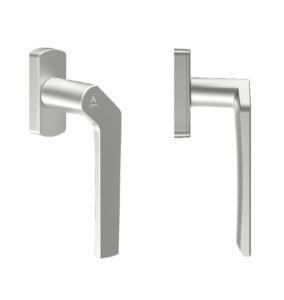

  • Stylish handle – cranked handle Cranked handle

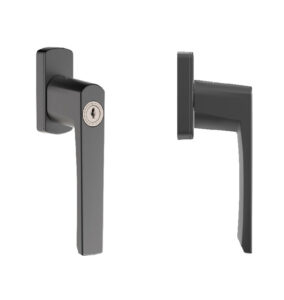

  • Stylish handle – handle with key Handle with key

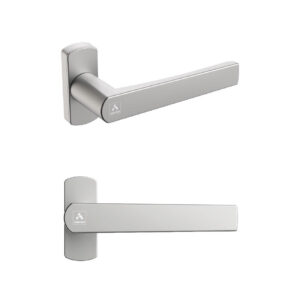

  • Stylish handle – door handle Door handle

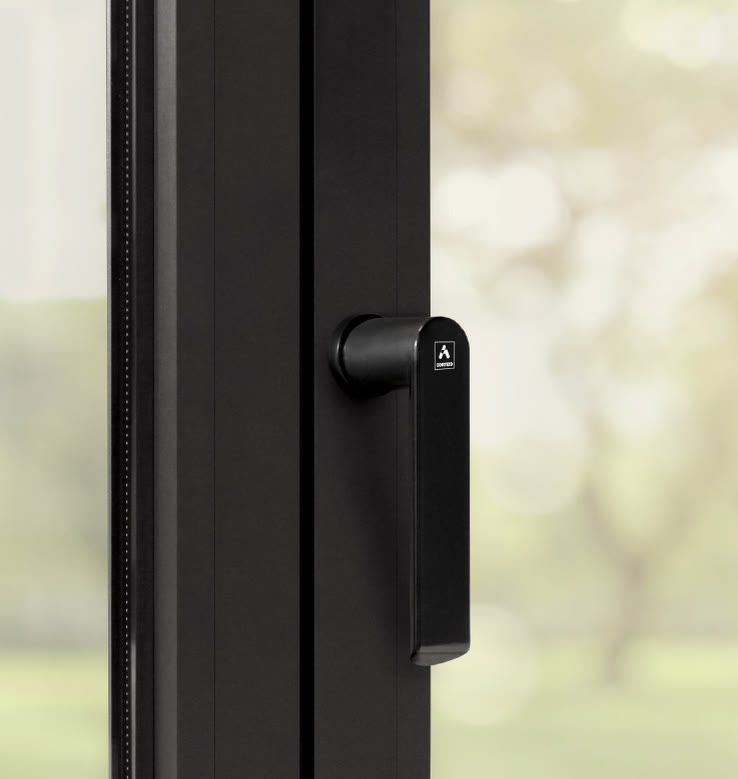

Minimalista handle

Minimalista handle

Simple lines, avant-garde design.

  • Straight styling
  • Roseless design
  • Compatible with all casement series: Canal European, Canal 16 and PVC
  • A dedicated gearbox (for the Canal European groove)
  • Concealed screws
  • 8 mm square spindle
  • Dimensions: 32 × 148 mm

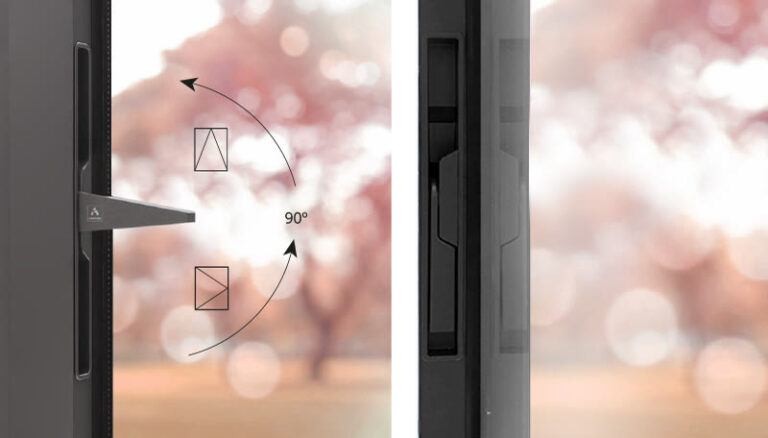

Arch Invisible handle

Arch Invisible handle

An exclusive handle integrated into the sash, imperceptible when seen head-on.

  • Compatible with COR 80 Concealed Sash and COR 70 Concealed Sash
  • Ergonomics, robustness and ease of use
  • Ideal with concealed hinges
  • Dimensions: 27.5 × 234 mm

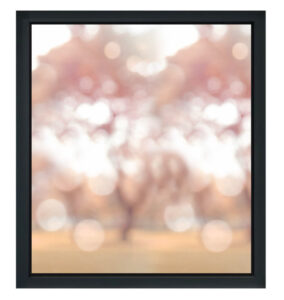

Other views

Arch Invisible handle

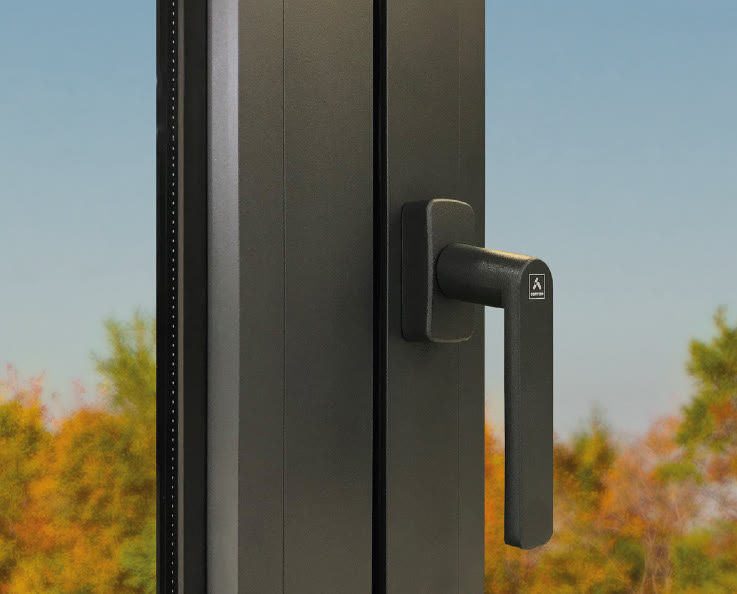

Cortizo handle

Cortizo handle

  • Design with a reduced rose
  • Compatible with a gearbox and multipoint locking
  • Concealed screws
  • 7 mm square spindle
  • Dimensions: 32 × 148 mm

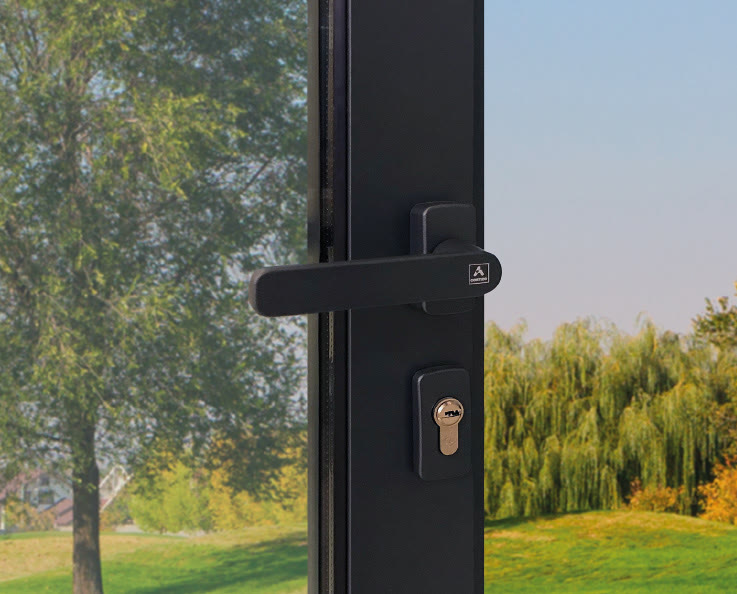

Cortizo door handle

Cortizo door handle

  • Design with a reduced rose
  • Version with left- or right-hand opening
  • Suitable for external and internal fitting
  • Available in a door version
  • Concealed screws
  • 8 mm square spindle
  • Dimensions: 32 × 148 mm

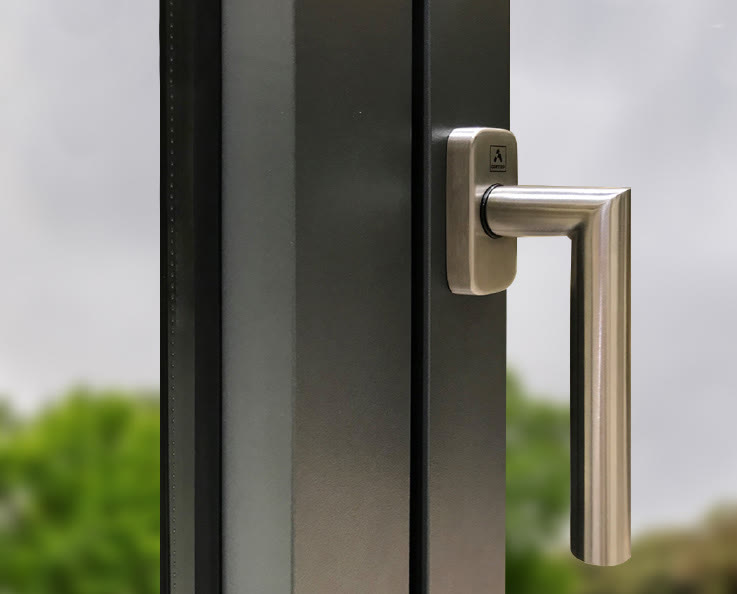

Stainless steel handle

Stainless steel handle

  • Design with a reduced rose
  • Compatible with a gearbox and multipoint locking
  • Available in a door version
  • Concealed screws
  • 7 mm square spindle
  • Dimensions: 31 × 135 mm

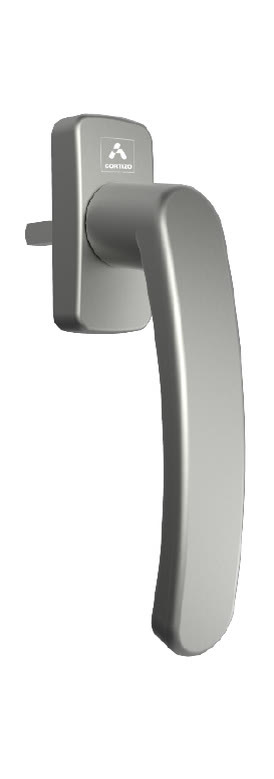

Sirius handle

Sirius handle

  • Curved styling
  • Design with a reduced rose
  • Compatible with a multipoint gearbox
  • Available in a door version
  • Square spindle: 7 mm
  • Dimensions: 32 × 155 mm

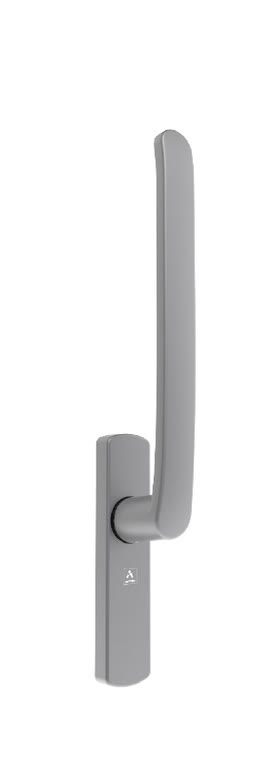

Large handle for lift-and-slide

Large handle for lift-and-slide

  • Avant-garde styling
  • Exclusively for the 4600 and 4700 lift-and-slide systems
  • Versions with and without a key
  • Multiple combinations: handle/handle, handle/flush pull
  • Tested to 25,000 cycles
  • 10 mm square spindle
  • Dimensions: 37 × 290 mm

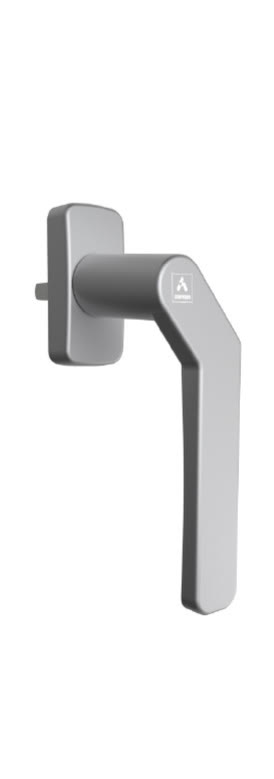

Cortizo cranked handle

Cortizo cranked handle

  • A handle designed specifically for sliding systems
  • Design with a reduced rose
  • Version with right- and left-hand opening
  • Suitable for internal and external fitting
  • 7 mm square spindle
  • Dimensions: 32 × 158 mm

Espagnolettes

Cortizo espagnolettes

The operating mechanisms behind the handle, in the keyed and removable versions.

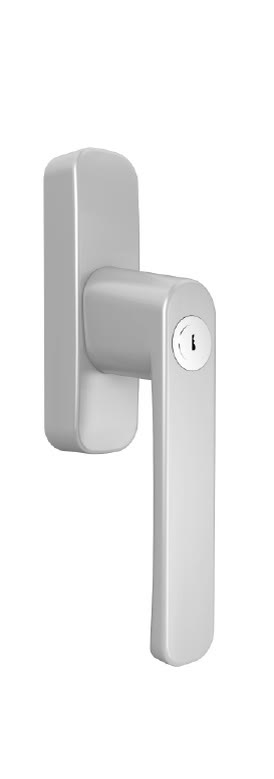

Cortizo espagnolette with key

Cortizo espagnolette with key

  • Maximum security
  • 3 safety positions: fully locked, unlocked and locked on the 2nd operation
  • Dimensions: 33 × 190 mm

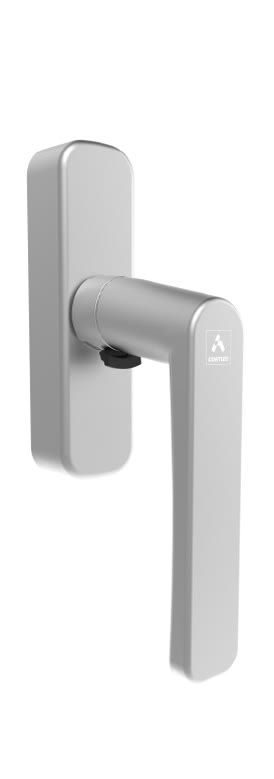

Cortizo removable espagnolette

Cortizo removable espagnolette

  • The handle fits easily onto the base mechanism
  • Handle clipped onto the rose
  • The handle can be removed in any position
  • Maximum durability under cycling
  • Dimensions: 33 × 173 mm

Pull handles

Cortizo pull handles

For entrance doors with heavy traffic or above-average dimensions.

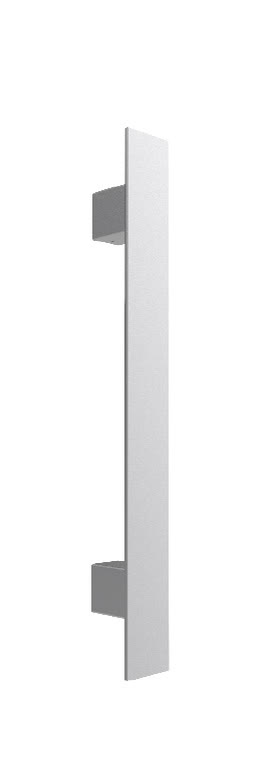

Art Infinity pull handle

Art Infinity pull handle

  • Suited to doors with heavy traffic or large dimensions
  • Straight or inclined design
  • Right- or left-hand opening

Locking systems

Cortizo locking systems

The Vision range, designed for minimalist profiles: from the visible lock to the one entirely concealed in the mullion.

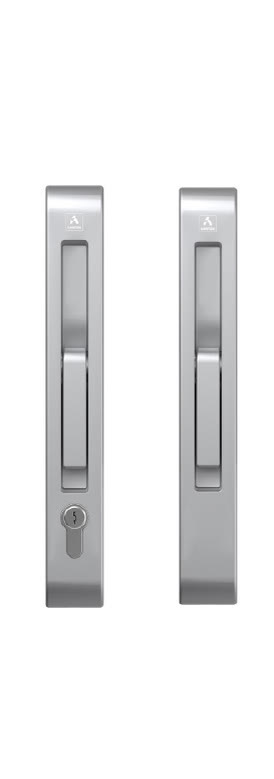

Vision Security lock

Vision Security lock

  • Key locking from inside and outside
  • The lock set into the profile, minimalist styling
  • Up to 4 mushroom locking points, with bushes
  • Pressure adjustment system
  • Dimensions: 36 × 260 mm

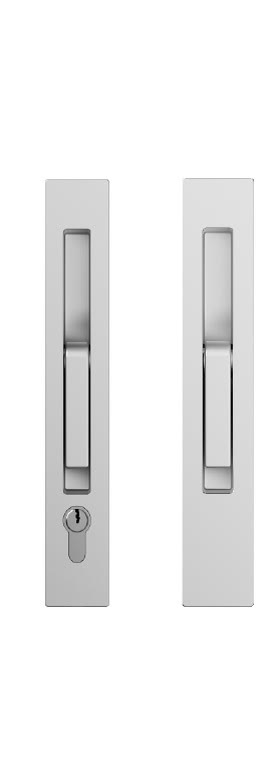

Vision Security Recessed lock

Vision Security Recessed lock

  • Key locking from inside and outside
  • A lock recessed into the profile, allowing the sashes to interlock
  • Up to 4 mushroom locking points, with bushes
  • Pressure adjustment system
  • Dimensions: 36 × 260 mm

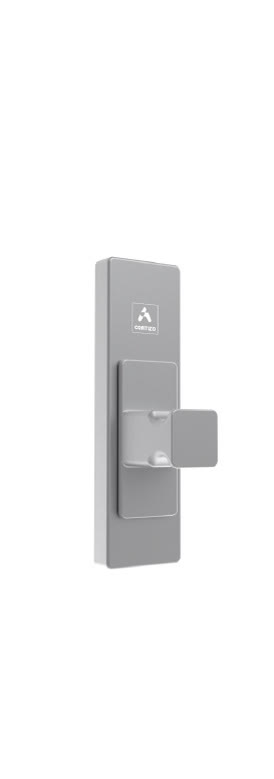

Vision lock

Vision lock

  • Straight styling, in keeping with the minimalist COR VISION line
  • Intuitive operation
  • Dimensions: 26 × 92 mm

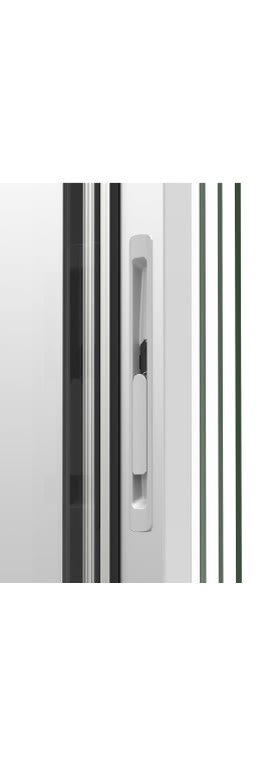

Vision Concealed lock

Vision Concealed lock

  • Applies to the COR VISION and COR VISION PLUS systems
  • Integrated into the central mullion
  • Imperceptible when seen head-on
  • Allows the sashes to be hidden completely in the side sections
  • Dimensions: 450 × 50 mm

Special hardware

Cortizo special hardware

The group covering hinges and mechanisms for heavy sashes, large openings and high security requirements. A section also called “Special hardware” on the Cortizo site.

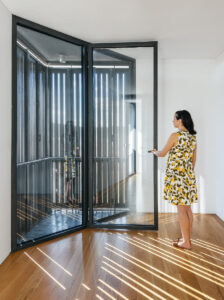

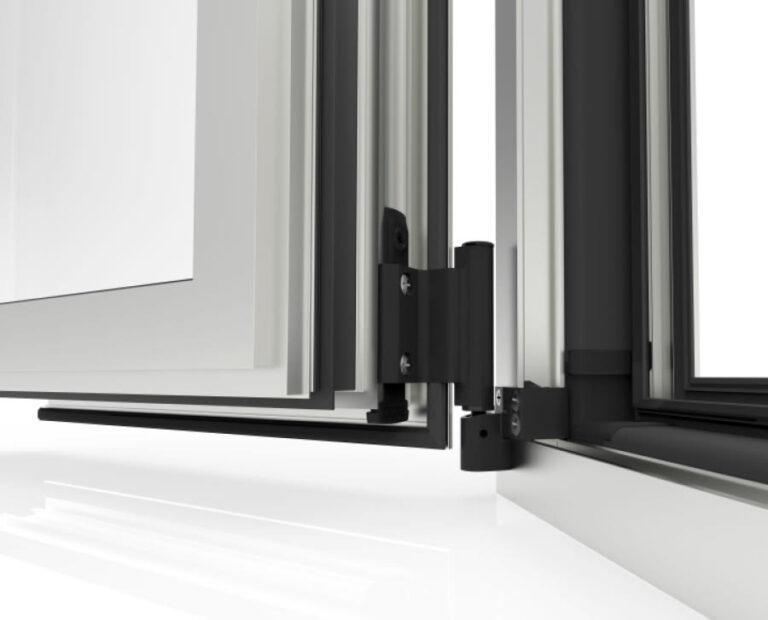

Cortizo HD hardware

Cortizo HD hardware

  • A hinge designed for large dimensions, floor-to-ceiling solutions
  • 3D adjustment
  • Maximum dimensions: 1200 × 3500 mm
  • Maximum weight per sash: 160 kg

Other views

Cortizo HD hardware

For large configurations, please consult the Architecture and Engineering Department.

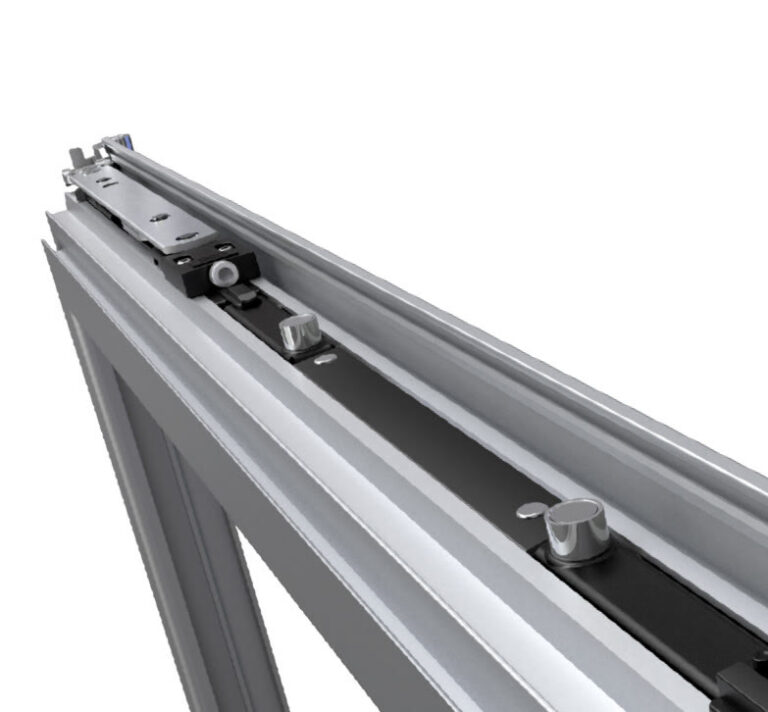

Evo Soft hardware

Evo Soft hardware

  • 3D adjustment
  • All locking points reinforced and adjustable
  • Up to 50% less effort to close
  • The option of multiple locking points
  • All sliding parts clip into place to eliminate play
  • Maximum weight per sash: 120 kg

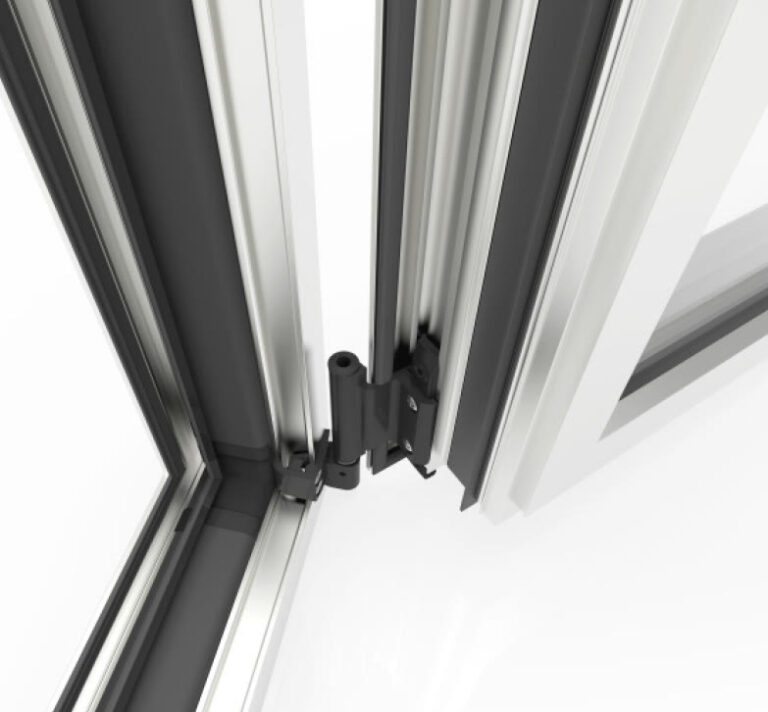

Evo Soft CLX 160 KG hardware

Evo Soft CLX 160 KG hardware

  • 3D adjustment
  • All locking points reinforced and adjustable
  • Up to 50% less effort to close
  • The option of multiple locking points
  • All sliding parts clip into place
  • Maximum weight per sash: 160 kg

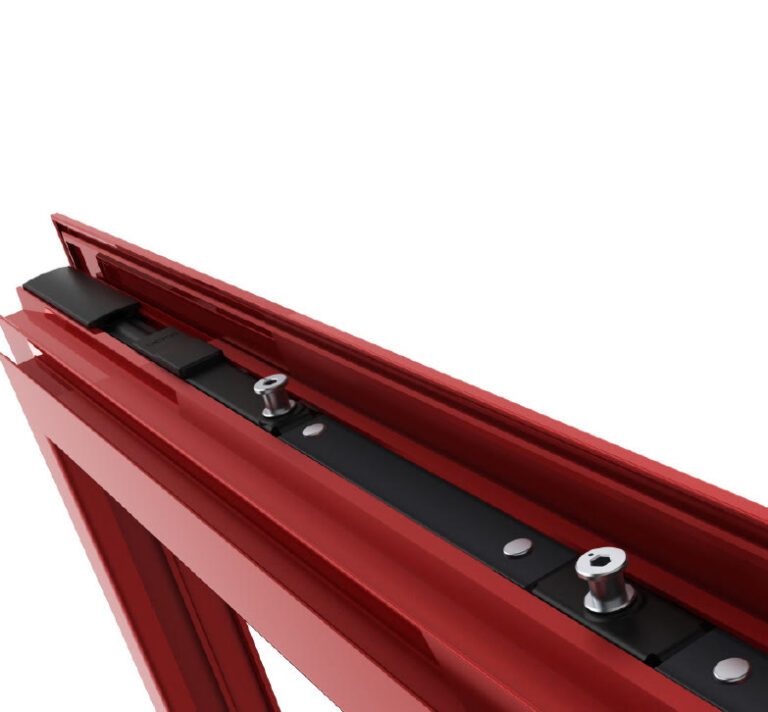

Evo Security hardware

Evo Security hardware

  • High-security hardware
  • Mushroom bolts with pressure adjustment and anti-burglary keeps
  • Protection against forcing, theft and breakage
  • Up to 14 locking points possible

About the data above. The names, descriptions, characteristics and photographs of the 20 items of hardware are those published by Cortizo, the manufacturer of the aluminium systems we work with. We have neither added to them nor altered them.

Whether a particular item is available depends on the profile series chosen for the project. Tell us which system we are using and we will confirm which versions can be fitted, in which finishes and with what implications for the rest of the joinery.

Next step

Not sure which hardware suits you?

Tell us what joinery your project involves and how it will be used. We will recommend the right version and include it in the quotation.
